Car station
Cabin operating panels
Full- and half-height car operating panels for surface and flush mounting, with segment, dot-matrix, LCD or TFT indication.
35 configurations · 13 series: Aria · Glasline Button · Glasline Touch · Horizon · Lumina · Luna · Neva · Orion · Penta · Selene · Standard · Standard Flush · Vega
U21TM0002Standard — full heightSurface-mounted steel car station. The reference configuration for new installations. This configuration: full height.EN 81-20EN 81-70- Panel heightFull height
- Width200 mm
- Height2000 mm

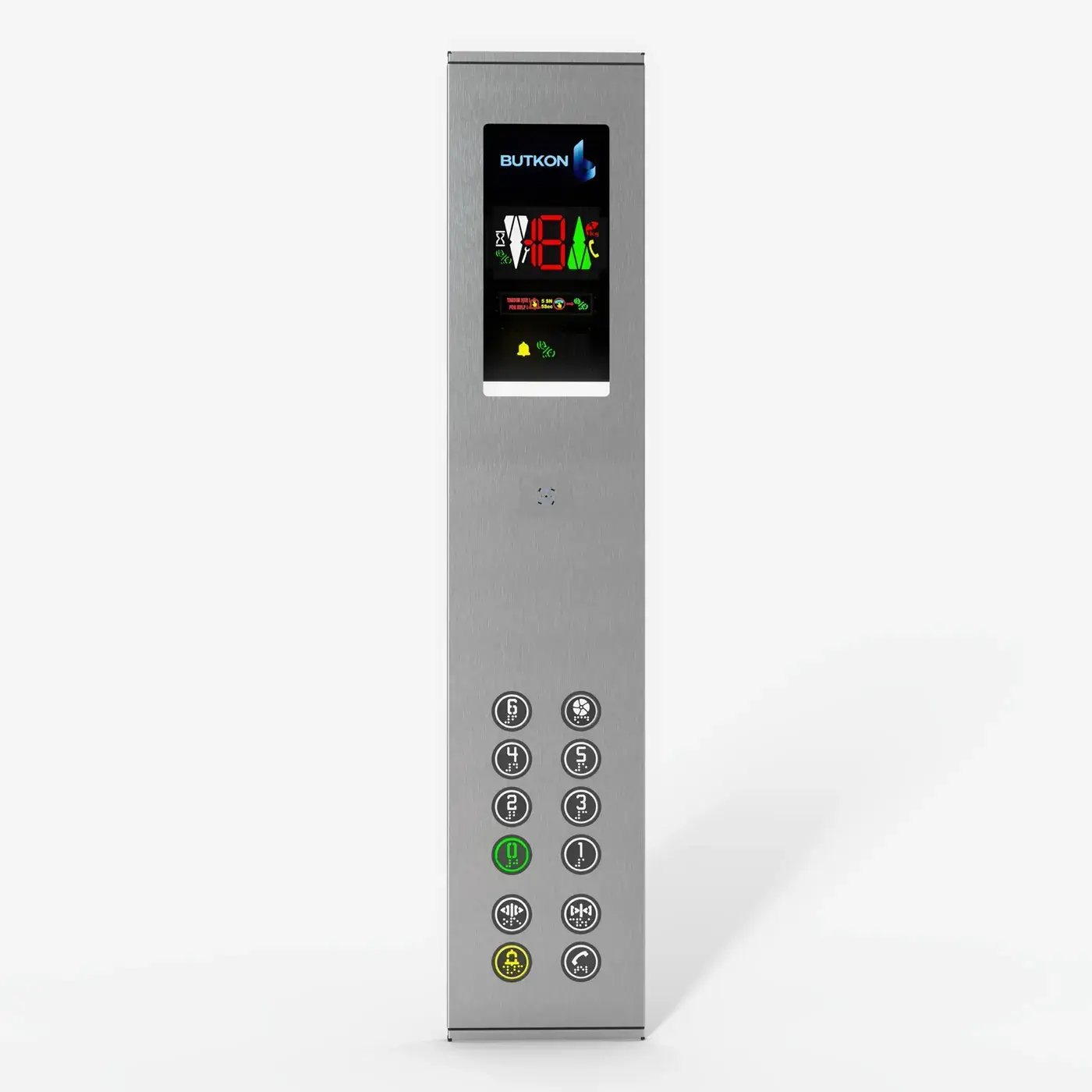

U21YR0002Standard — half heightSurface-mounted steel car station. The reference configuration for new installations. This configuration: half height.EN 81-20EN 81-70- Panel heightHalf height
- Width200 mm
- Height1000 mm
U21TM0001Lumina — full heightSurface-mounted car station with a slim front and recessed indication band. This configuration: full height.EN 81-20EN 81-70- Panel heightFull height
- Width230 mm
- Height2000 mm

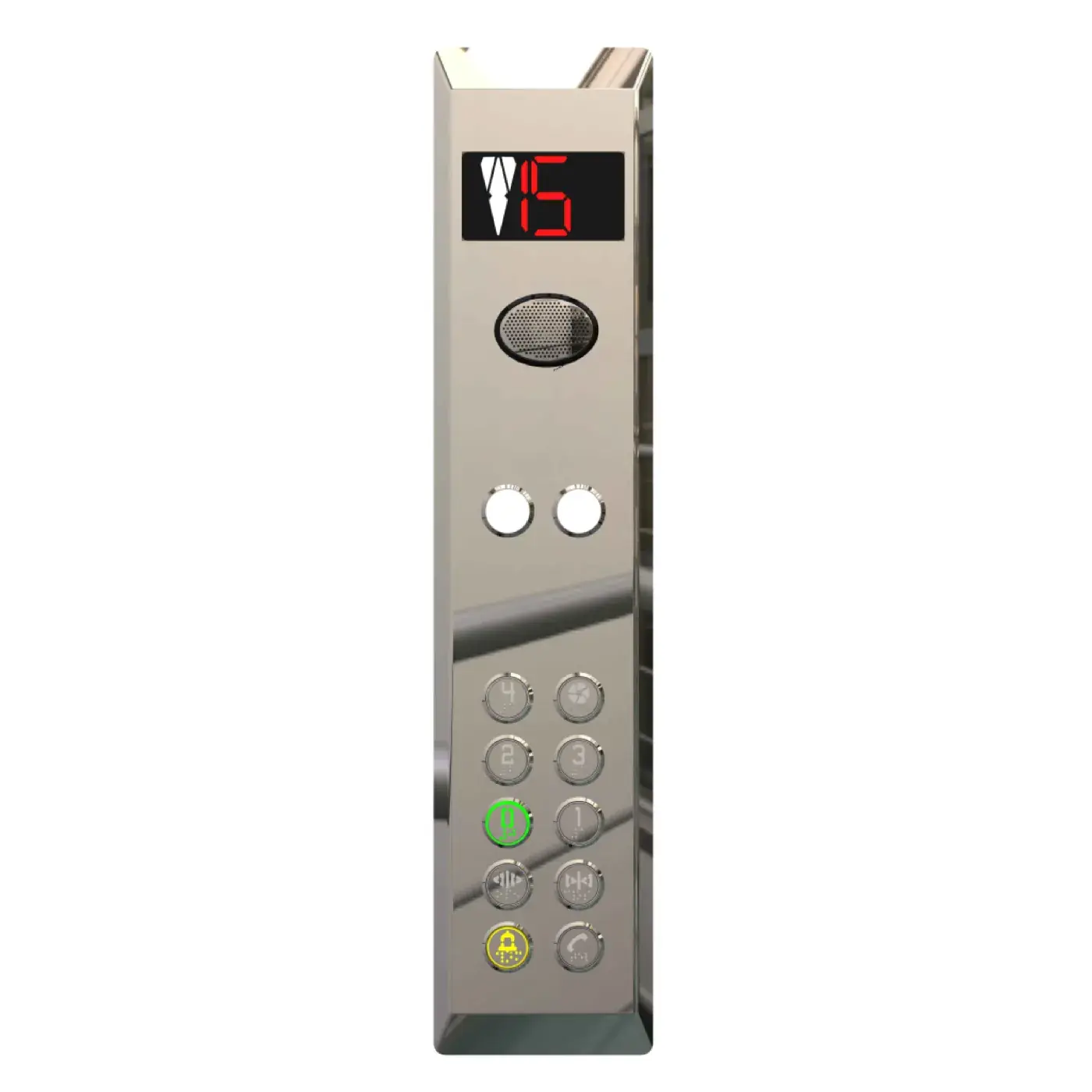

U21YR0001Lumina — half heightSurface-mounted car station with a slim front and recessed indication band. This configuration: half height.EN 81-20EN 81-70- Panel heightHalf height
- Width175 mm
- Height1000 mm
U21TM0013Orion — full heightSurface-mounted car station with a segmented front and separated indication field. This configuration: full height.EN 81-20EN 81-70- Panel heightFull height
- Width200 mm
- Height2000 mm

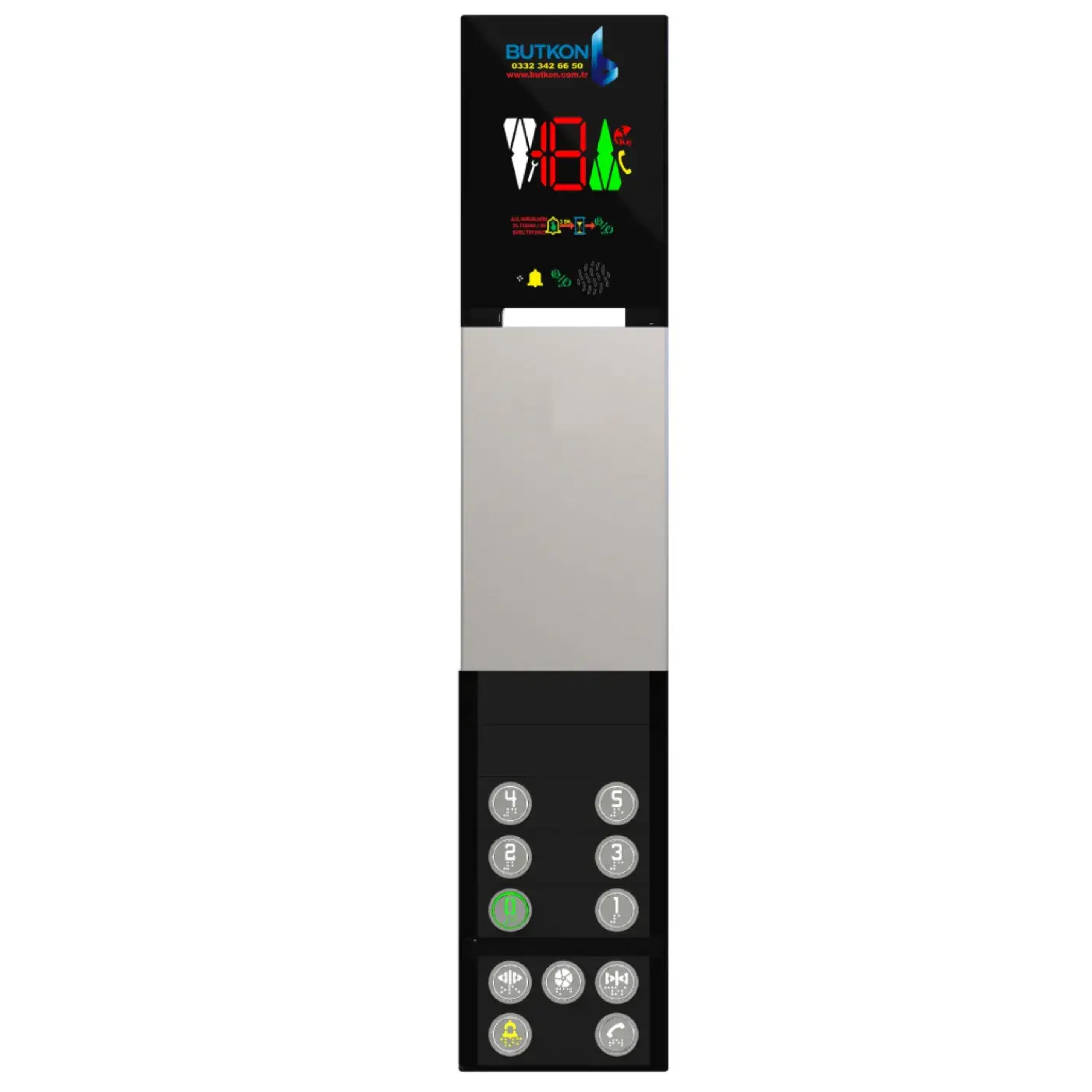

U21YR0005Orion — half heightSurface-mounted car station with a segmented front and separated indication field. This configuration: half height.EN 81-20EN 81-70- Panel heightHalf height
- Width200 mm
- Height1000 mm
U21TM0008Aria — full heightSurface-mounted car station with a narrow profile for compact car widths. This configuration: full height.EN 81-20EN 81-70- Panel heightFull height
- Width200 mm
- Height2000 mm

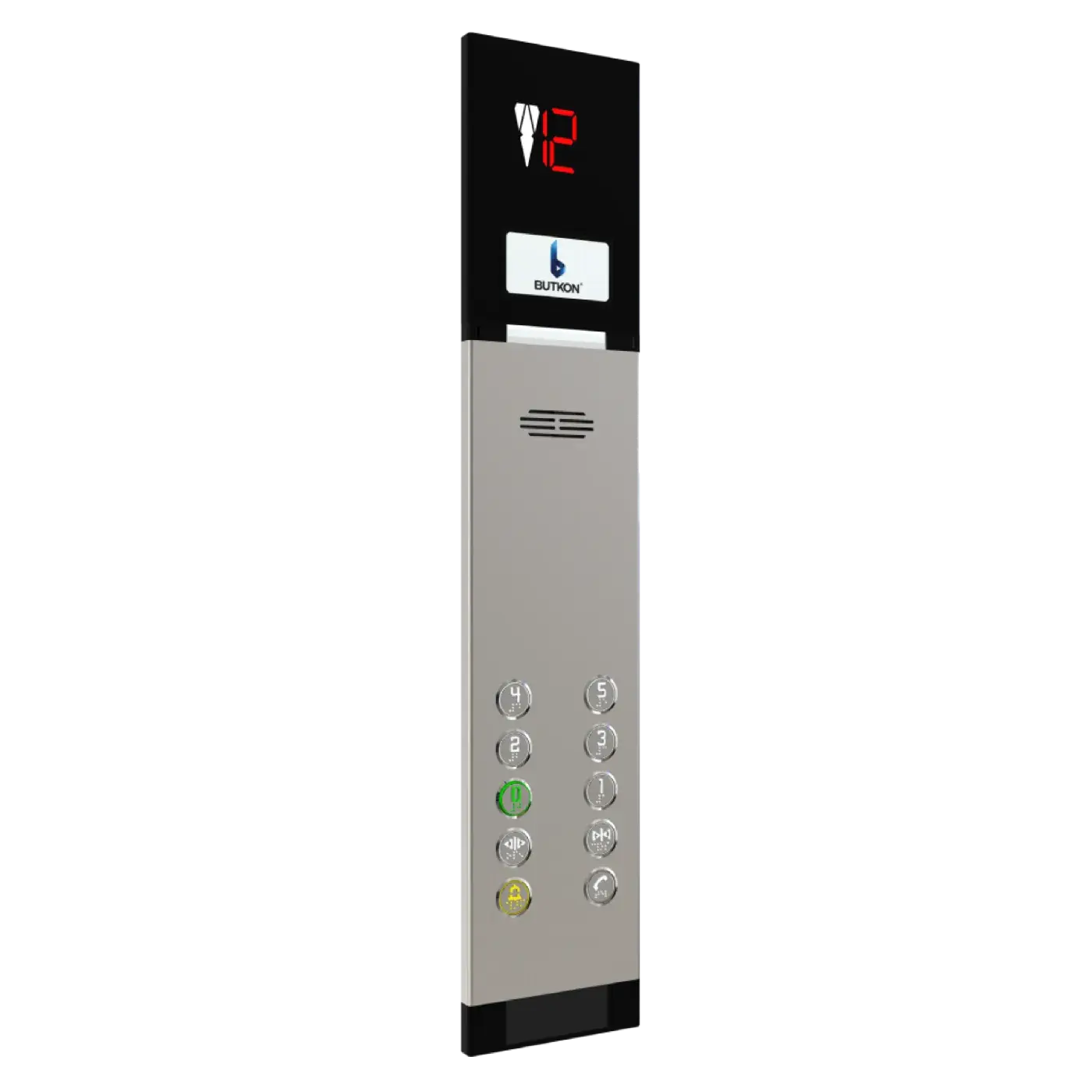

U21YR0007Aria — half heightSurface-mounted car station with a narrow profile for compact car widths. This configuration: half height.EN 81-20EN 81-70- Panel heightHalf height
- Width200 mm
- Height1000 mm
U21YR0012Vega — half height, black or whiteSurface-mounted car station in brushed steel or coated black and white fronts. This configuration: half height, black or white.EN 81-20EN 81-70- Panel heightHalf height
- Width210 mm
- Height1050 mm
U21YR0015Vega Steel — half height, black or whiteSurface-mounted car station in brushed steel or coated black and white fronts. This configuration: half height, black or white.EN 81-20EN 81-70- Panel heightHalf height
- Width210 mm
- Height1050 mm
U21TM0040Vega Steel Plus — full height, black or whiteSurface-mounted car station in brushed steel or coated black and white fronts. This configuration: full height, black or white.EN 81-20EN 81-70- Panel heightFull height
- Width225 mm
- Height2000 mm
U21TM0046Vega Plus — full height, black or whiteSurface-mounted car station in brushed steel or coated black and white fronts. This configuration: full height, black or white.EN 81-20EN 81-70- Panel heightFull height
- Width225 mm
- Height2000 mm
U21YR0034Vega Plus — half height, black or whiteSurface-mounted car station in brushed steel or coated black and white fronts. This configuration: half height, black or white.EN 81-20EN 81-70- Panel heightHalf height
- Width225 mm
- Height1150 mm
U21TM0058Vega Plus X — full height, black or whiteSurface-mounted car station in brushed steel or coated black and white fronts. This configuration: full height, black or white.EN 81-20EN 81-70- Panel heightFull height
- Width225 mm
- Height2000 mm
U21TM0052Vega Plus X — full height, black or whiteSurface-mounted car station in brushed steel or coated black and white fronts. This configuration: full height, black or white.EN 81-20EN 81-70- Panel heightFull height
- Width225 mm
- Height2000 mm
U21YR0040Vega Plus X — half height, black or whiteSurface-mounted car station in brushed steel or coated black and white fronts. This configuration: half height, black or white.EN 81-20EN 81-70- Panel heightHalf height
- Width225 mm
- Height1150 mm
U21YR0028Vega Steel Plus — half height, black or whiteSurface-mounted car station in brushed steel or coated black and white fronts. This configuration: half height, black or white.EN 81-20EN 81-70- Panel heightHalf height
- Width225 mm
- Height1150 mm
U21YR0046Vega Plus X — half height, black or whiteSurface-mounted car station in brushed steel or coated black and white fronts. This configuration: half height, black or white.EN 81-20EN 81-70- Panel heightHalf height
- Width225 mm
- Height1150 mm

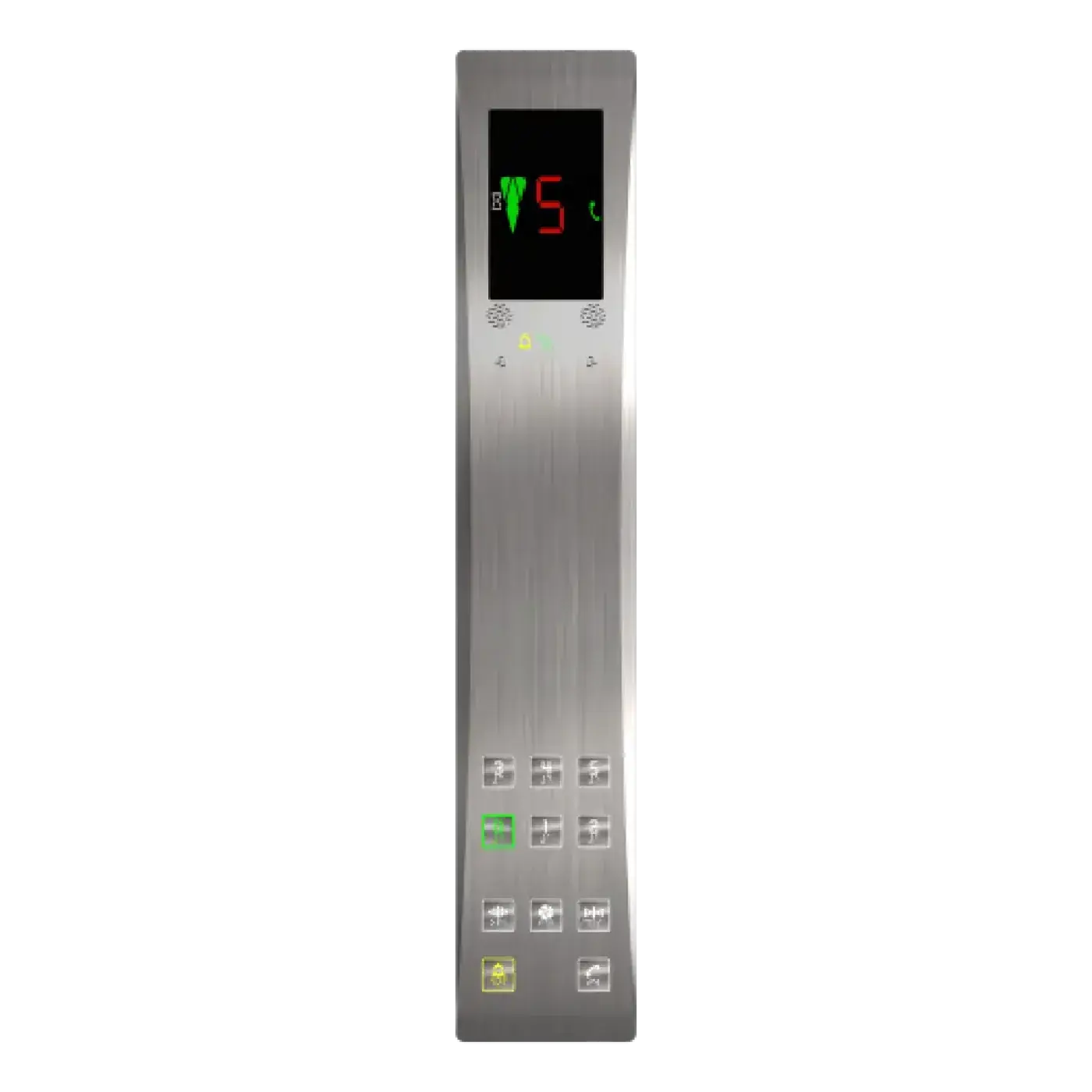

U21YR0019Penta — half heightSurface-mounted car station with a five-segment front layout. This configuration: half height.EN 81-20EN 81-70- Panel heightHalf height
- Width200 mm
- Height1100 mm
U21TM0016Selene — full heightSurface-mounted car station with an indirectly illuminated indication field. This configuration: full height.EN 81-20EN 81-70- Panel heightFull height
- Width300 mm
- Height200 mm

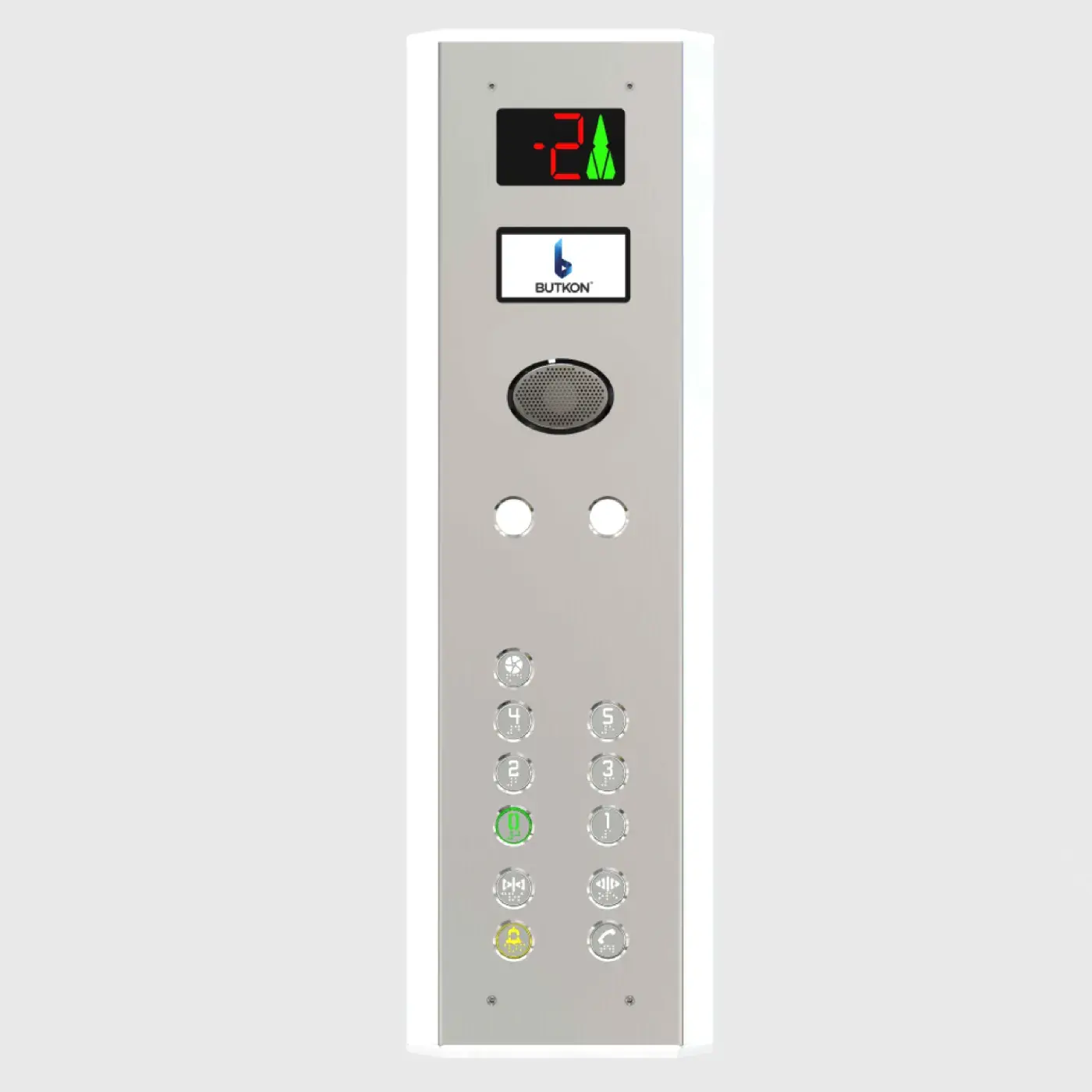

U21YR0020Selene — half heightSurface-mounted car station with an indirectly illuminated indication field. This configuration: half height.EN 81-20EN 81-70- Panel heightHalf height
- Width210 mm
- Height1050 mm

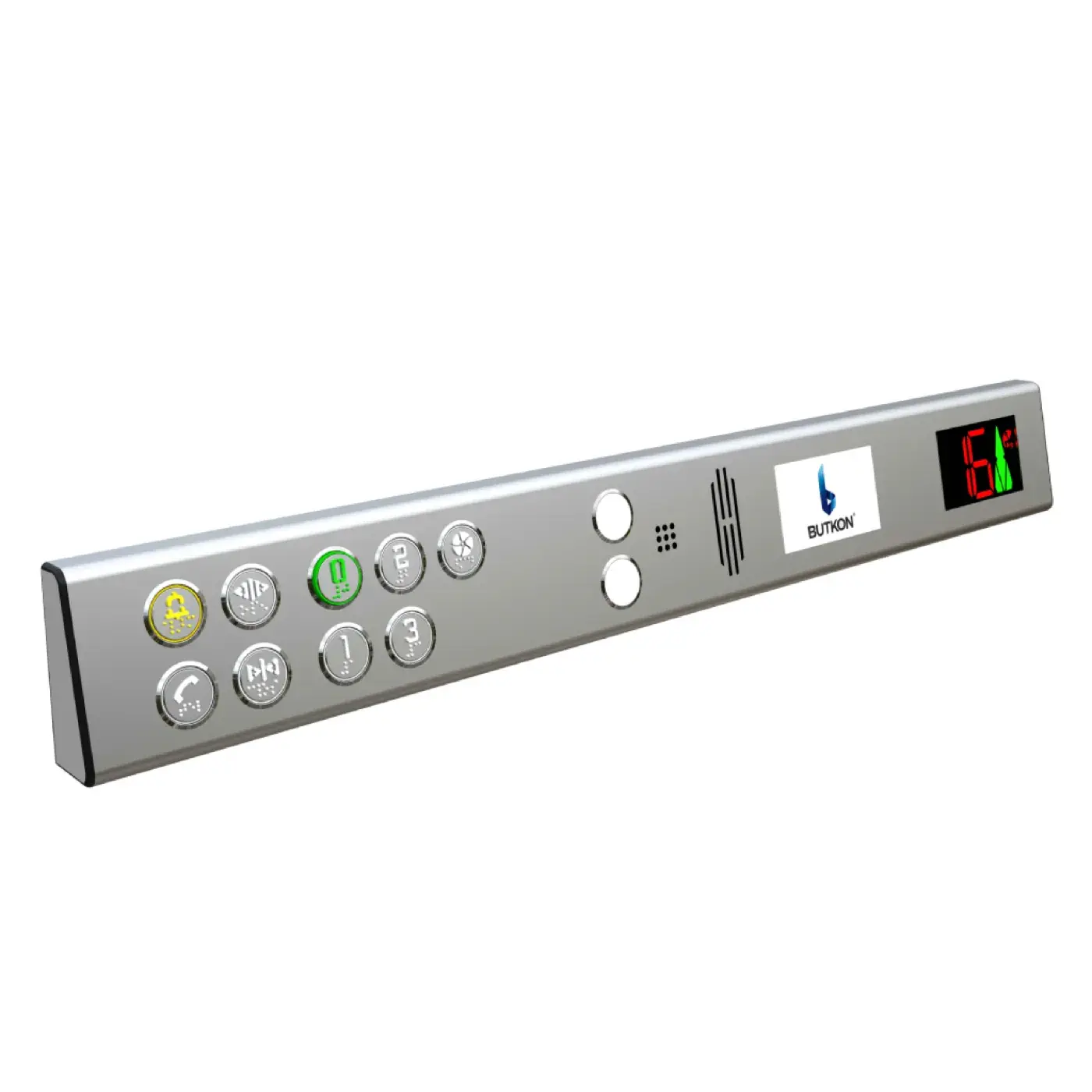

U21YT0001HorizonHorizontal car station for wide cars and side-wall installation.EN 81-20EN 81-70- Width980 mm
- Height128 mm
- Depth55 mm
U29TM0002Glasline Button — full height, whiteFlush-mounted glass-front car station with mechanical push buttons. This configuration: full height, white.EN 81-20EN 81-70- Panel heightFull height
- Width240 mm
- Height2000 mm
U29YR0001Glasline Button — half height, blackFlush-mounted glass-front car station with mechanical push buttons. This configuration: half height, black.EN 81-20EN 81-70- Panel heightHalf height
U29YR0002Glasline Button — half height, whiteFlush-mounted glass-front car station with mechanical push buttons. This configuration: half height, white.EN 81-20EN 81-70- Panel heightHalf height
U29TM0001Glasline Button — full height, blackFlush-mounted glass-front car station with mechanical push buttons. This configuration: full height, black.EN 81-20EN 81-70- Panel heightFull height
- Width240 mm
- Height2000 mm

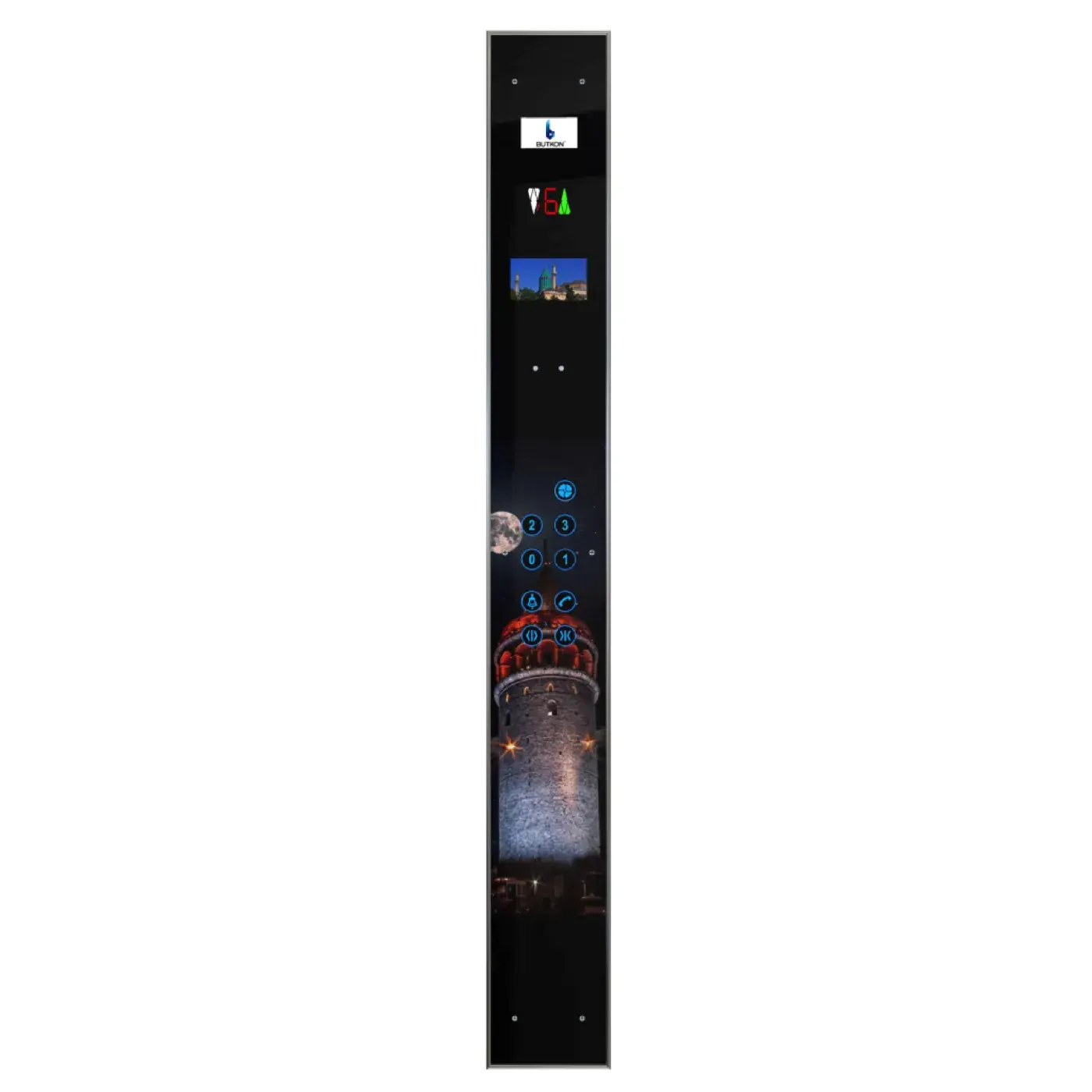

U31TM0001Glasline Touch — full height, blackGlass-front car station with capacitive touch actuation. This configuration: full height, black.EN 81-20EN 81-70- Panel heightFull height
- Width240 mm
- Height2000 mm
U31TM0002Glasline Touch — full height, whiteGlass-front car station with capacitive touch actuation. This configuration: full height, white.EN 81-20EN 81-70- Panel heightFull height
- Width240 mm
- Height2000 mm

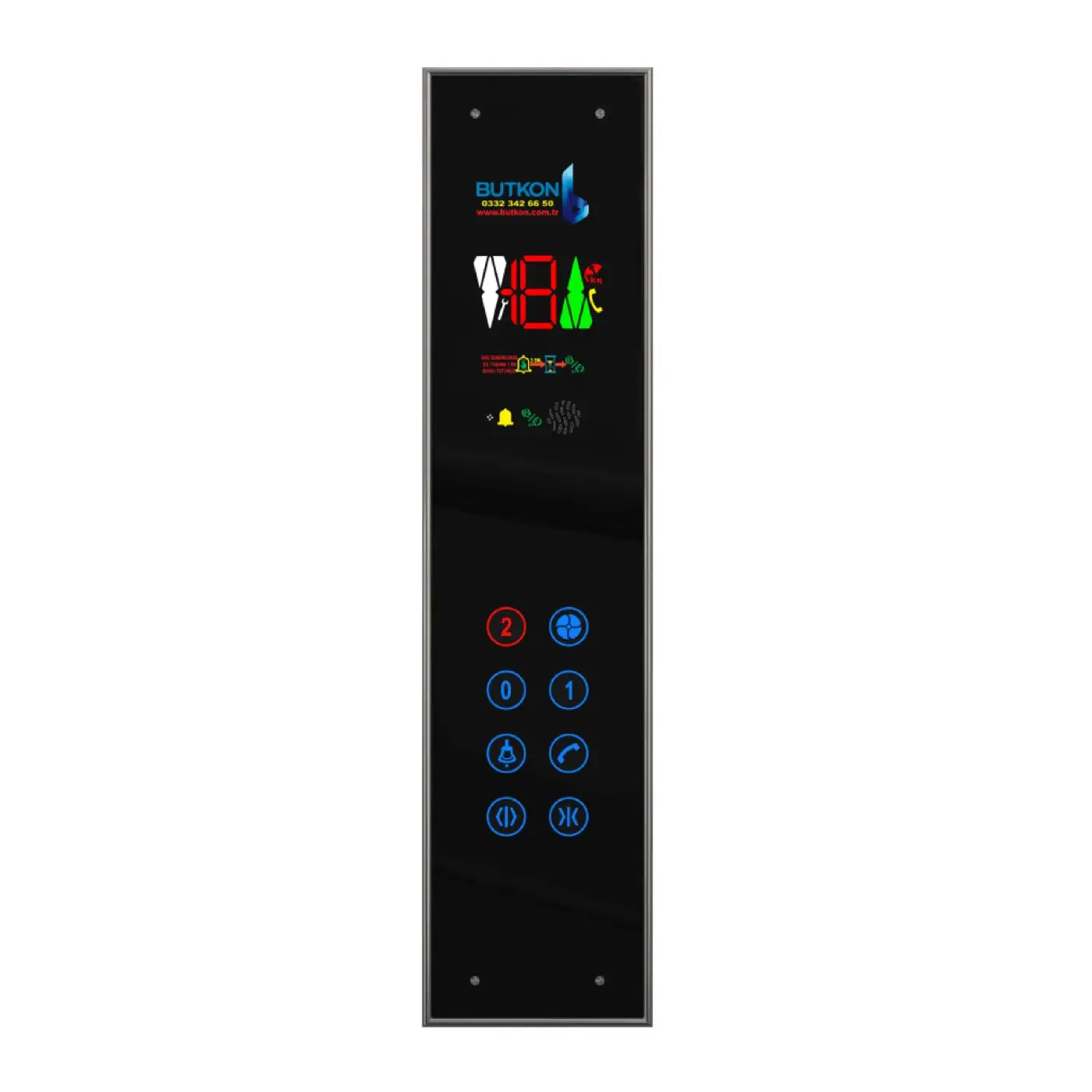

U31YR0001Glasline Touch — half height, blackGlass-front car station with capacitive touch actuation. This configuration: half height, black.EN 81-20EN 81-70- Panel heightHalf height
- Width240 mm
- Height1000 mm

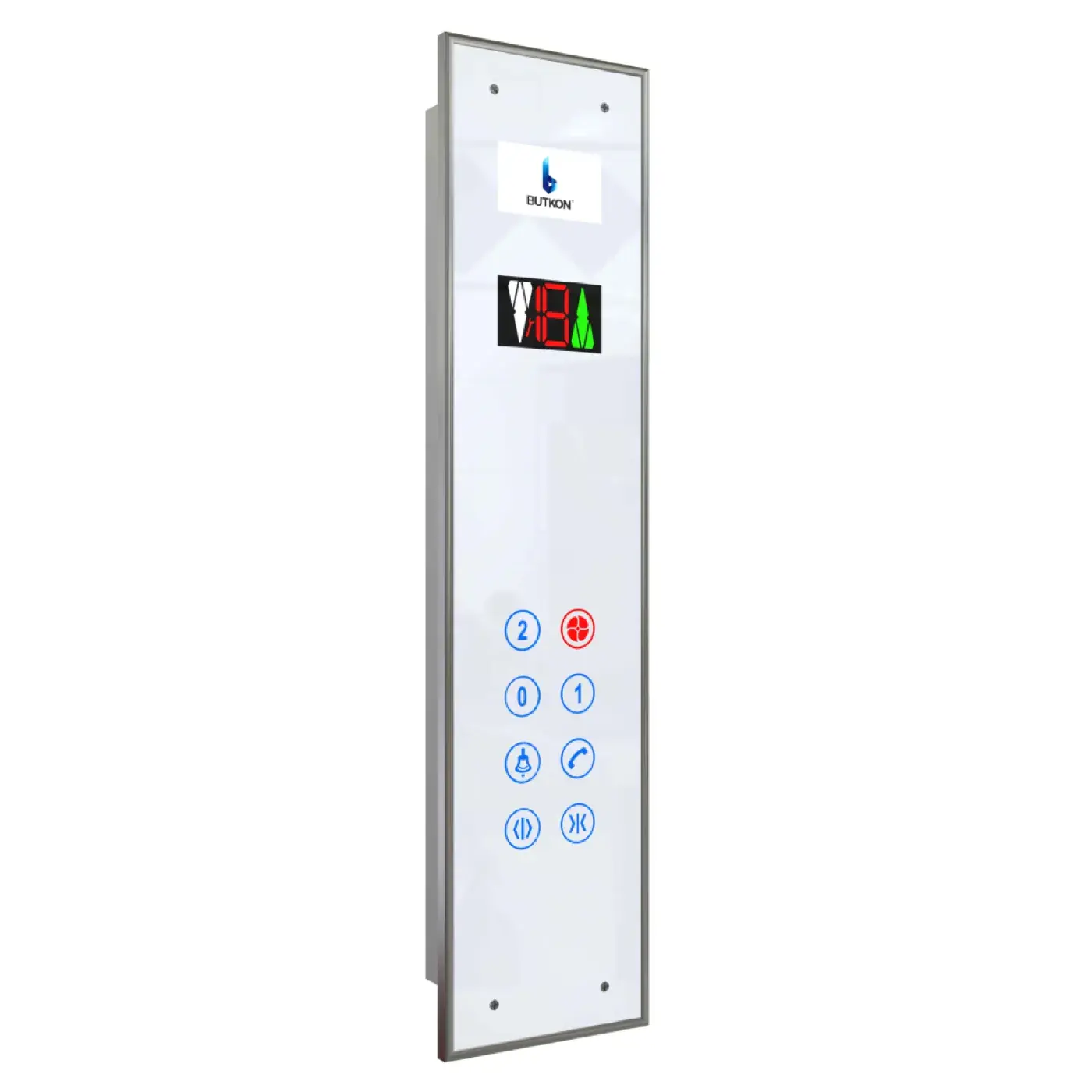

U31YR0002Glasline Touch — half height, whiteGlass-front car station with capacitive touch actuation. This configuration: half height, white.EN 81-20EN 81-70- Panel heightHalf height
- Width240 mm
- Height1000 mm

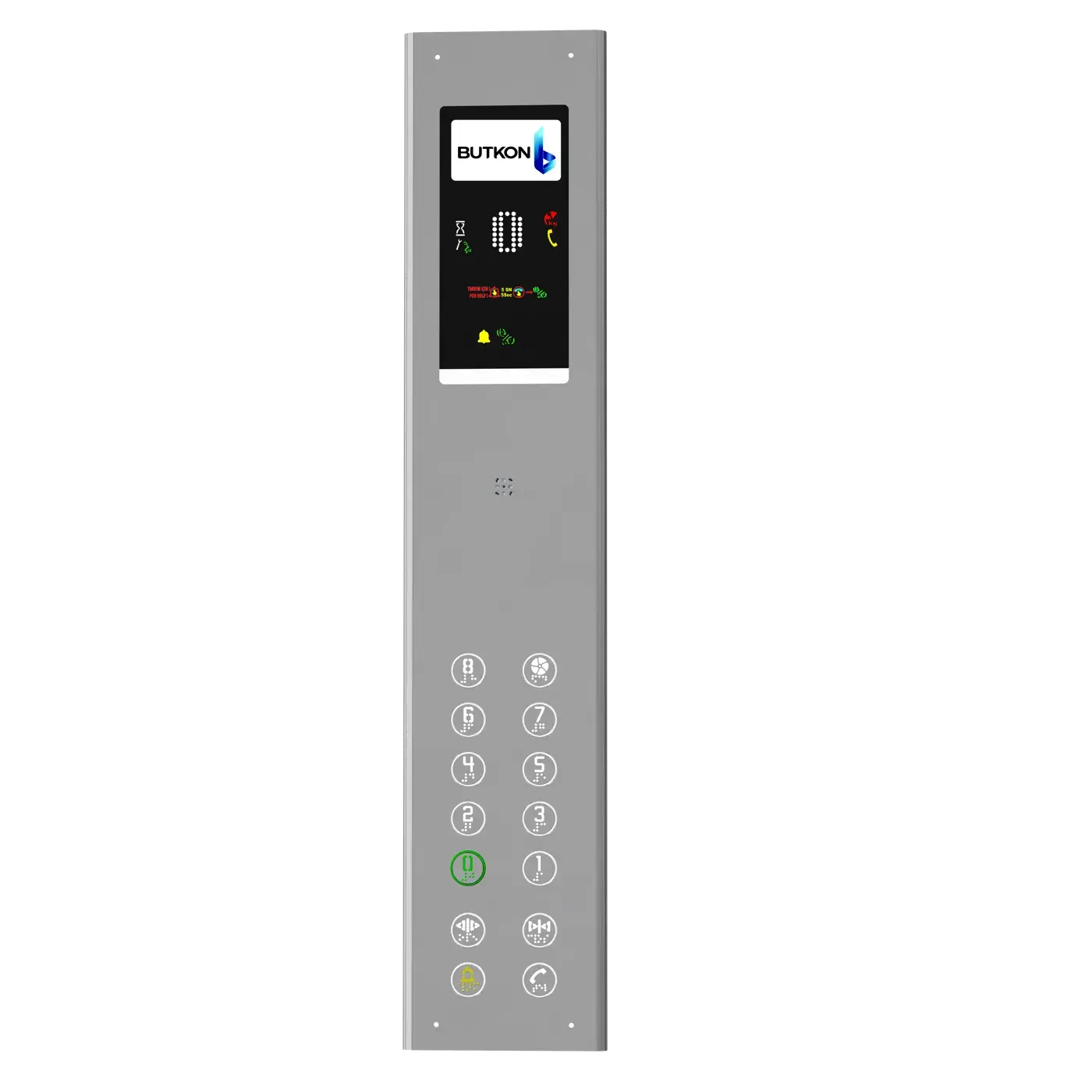

U21YR0023Luna — half heightSurface-mounted car station with a rounded front and continuous indication strip. This configuration: half height.EN 81-20EN 81-70- Panel heightHalf height
- Width200 mm
- Height1000 mm
U27TM0002Standard Flush — full heightFlush-mounted steel car station for recessed car-wall installation. This configuration: full height.EN 81-20EN 81-70- Panel heightFull height
- Width200 mm
- Height1980 mm

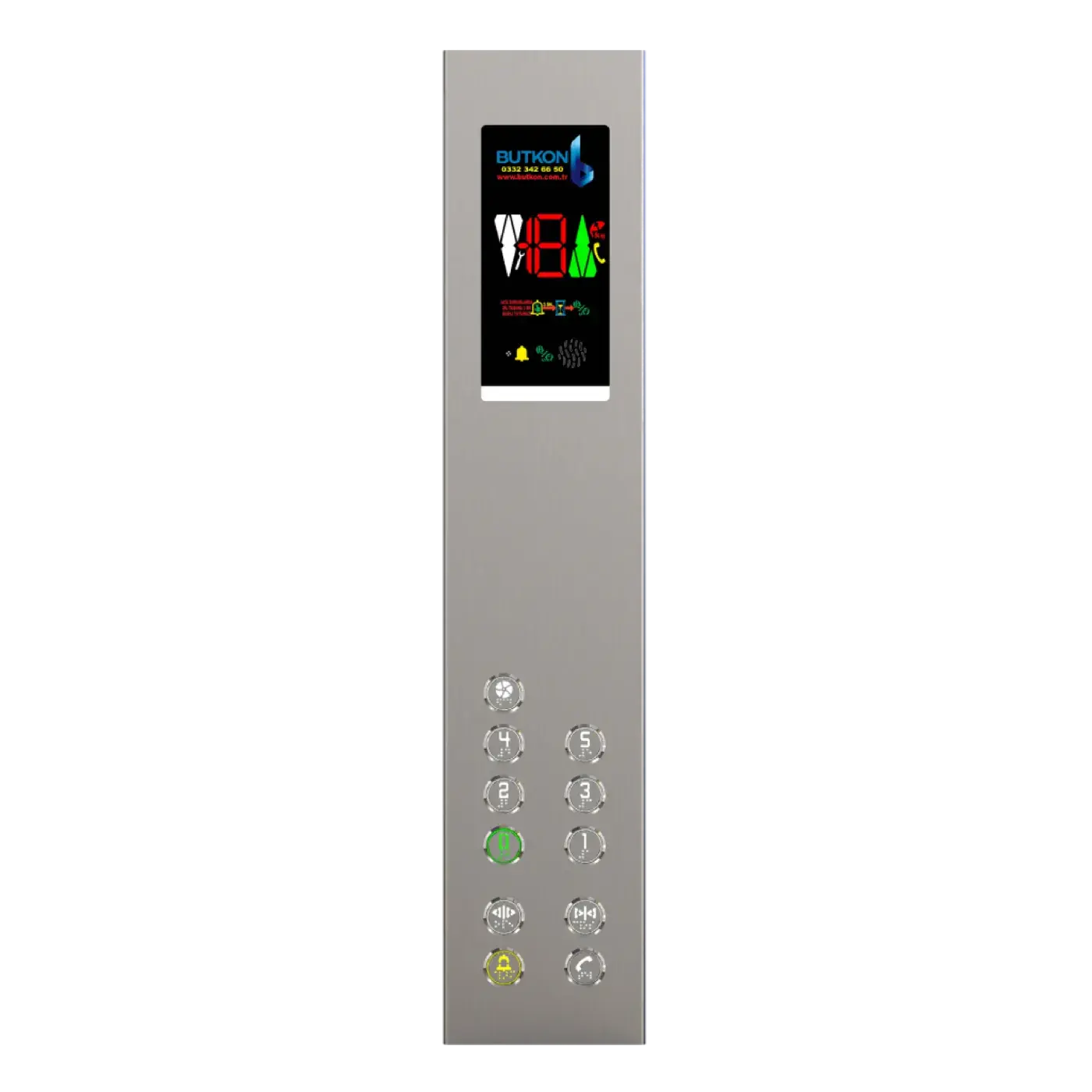

U27YR0002Standard Flush — half heightFlush-mounted steel car station for recessed car-wall installation. This configuration: half height.EN 81-20EN 81-70- Panel heightHalf height
- Width200 mm
- Height980 mm
U21TM0136NevaCar station platform with configurable indication, engraving and communication options.EN 81-20EN 81-70View details
U21TM0136NevaCar station platform with configurable indication, engraving and communication options.EN 81-20EN 81-70View detailsRelated
