Vega series
Vega — half height, black or white
Article code U21YR0012

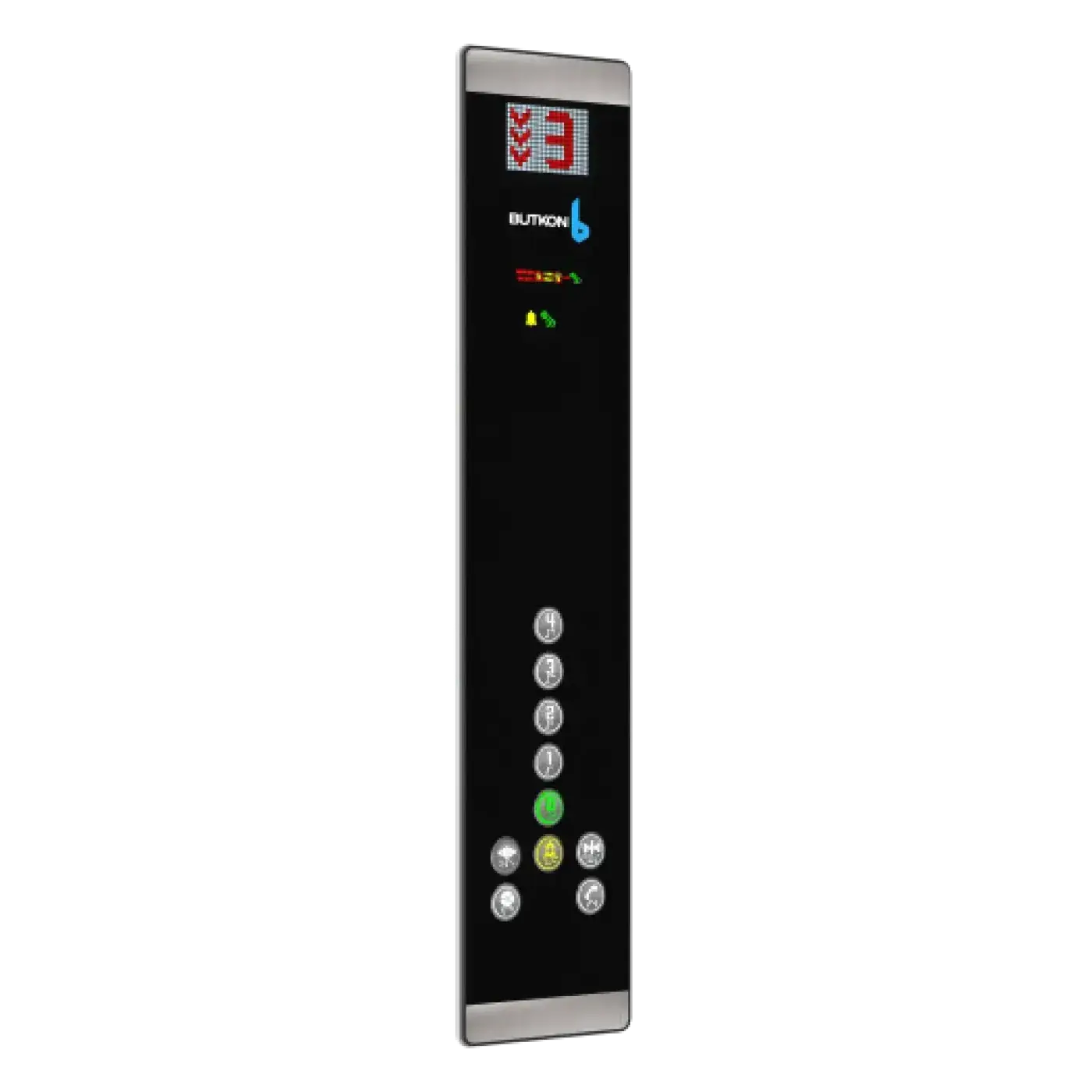

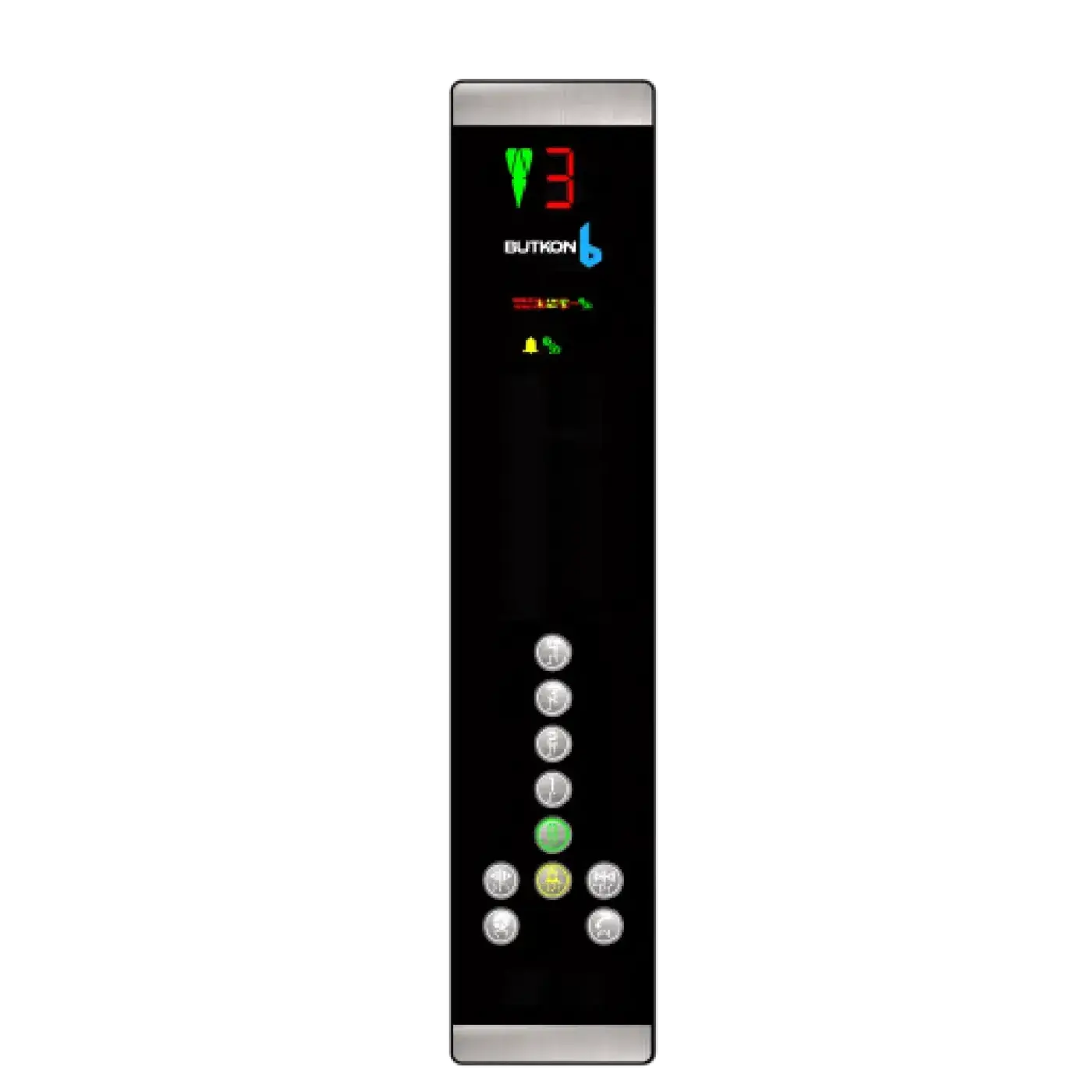

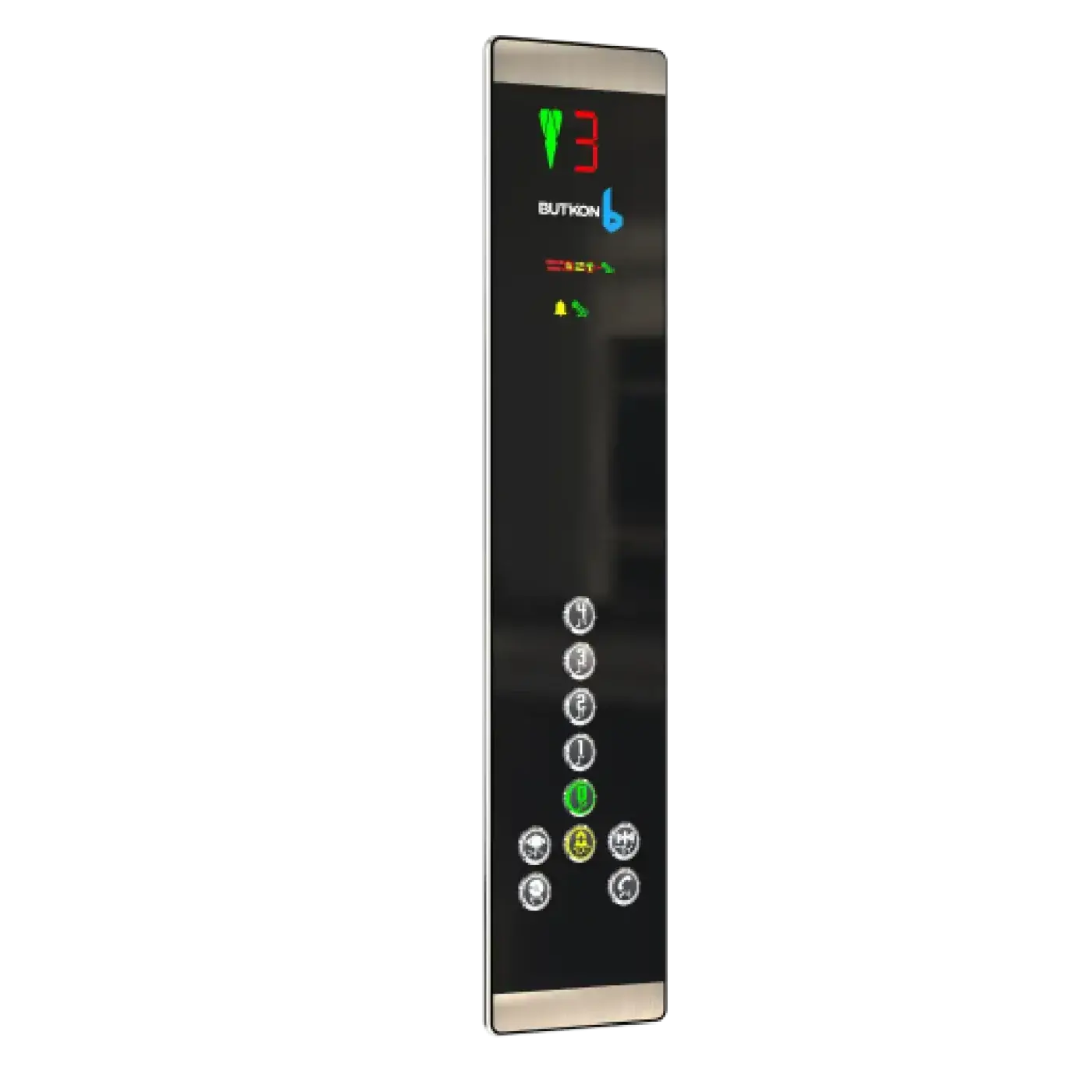

Surface-mounted car station in brushed steel or coated black and white fronts. This configuration: half height, black or white.
EN 81-20EN 81-70
| Mounting | Surface mounted |
|---|---|
| Panel height | Half height |
| Front finish | Black or white |
| Actuation | Mechanical push button |
| Width | 210 mm |
| Height | 1050 mm |
| Depth | 16 mm |
Configuration options
- Straightforward installationFront assembly and fixing points designed for fast mounting on site.
- Configurable front finishMirror, satin, black or grey panel surfaces on request.
- Configurable button finishButton surfaces matched to the panel front.
- Serial and parallel interfacesAvailable for parallel wiring and for serial-communication control systems.
- Selectable indicationSeven-segment, dot-matrix, LCD or TFT indication depending on configuration.
- Emergency lightingIntegrated emergency illumination in the panel front.
- Custom engravingPanel engraving and illuminated logo to the customer artwork.
- Communication module optionPrepared for an integrated emergency-call and status-reporting module.
Request a quote for this product
Quote the article code U21YR0012 in your message so the position can be matched directly.
Dimensions
Variants and dimensions
Dimensions as published for this configuration. Confirm against the existing opening before ordering a retrofit position.
| Front finish | Panel height | Width | Height | Depth | Note |
|---|---|---|---|---|---|
| Black | Half height | 210 mm | 1050 mm | 16 mm | — |
| White | — | — | — | — | *FOR WHITE MODEL : U21YR0013 |
Ordering
Interface variants
Where a configuration exists for more than one control interface, each variant carries its own article code.
Black
| Parallel wiring | U21YR0012 |
|---|
Further interface codes
| Serial communication | U21YR0024 |
|---|---|
| Serial communication | U21YR0025 |
