Standard series
Standard — half height
Article code U21YR0002

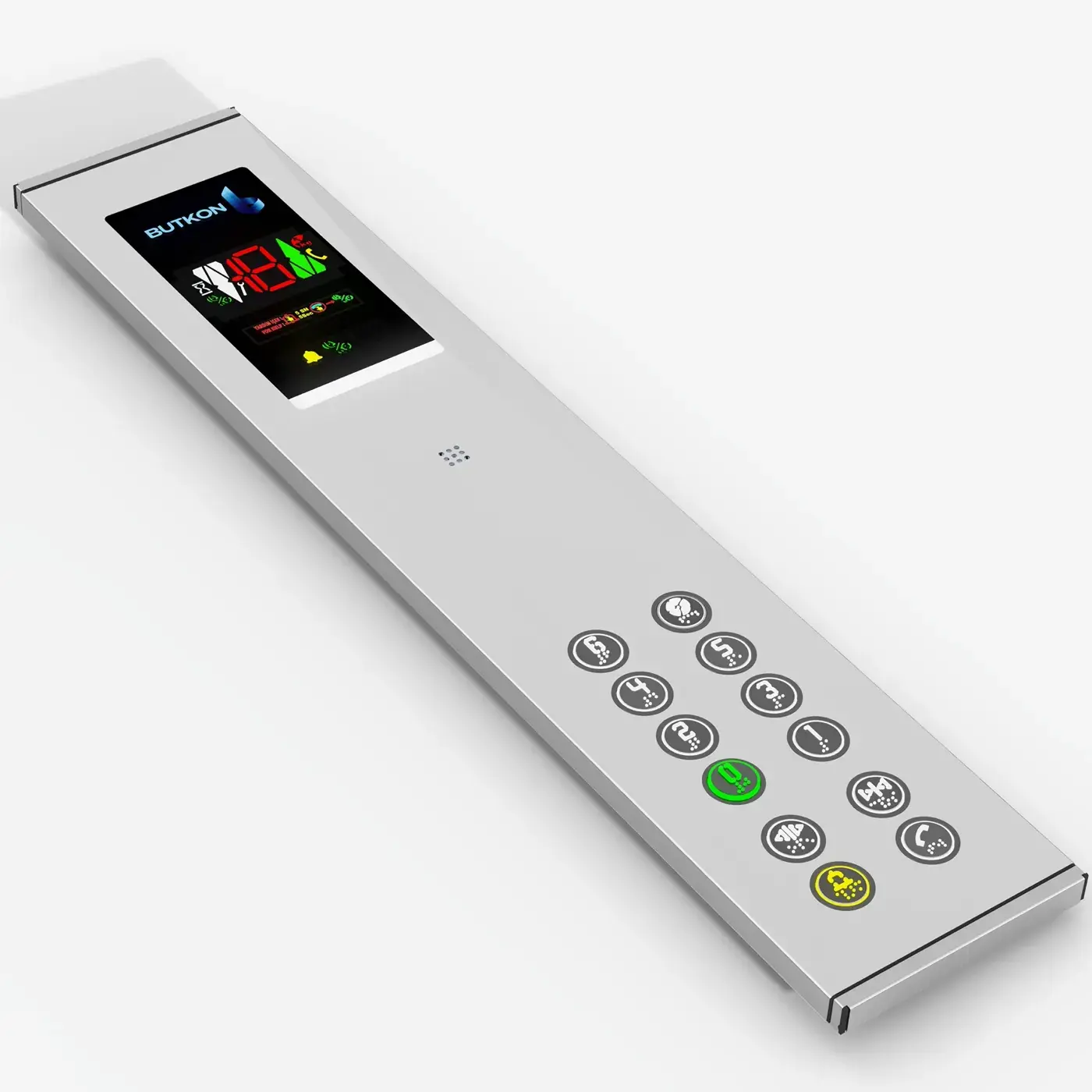

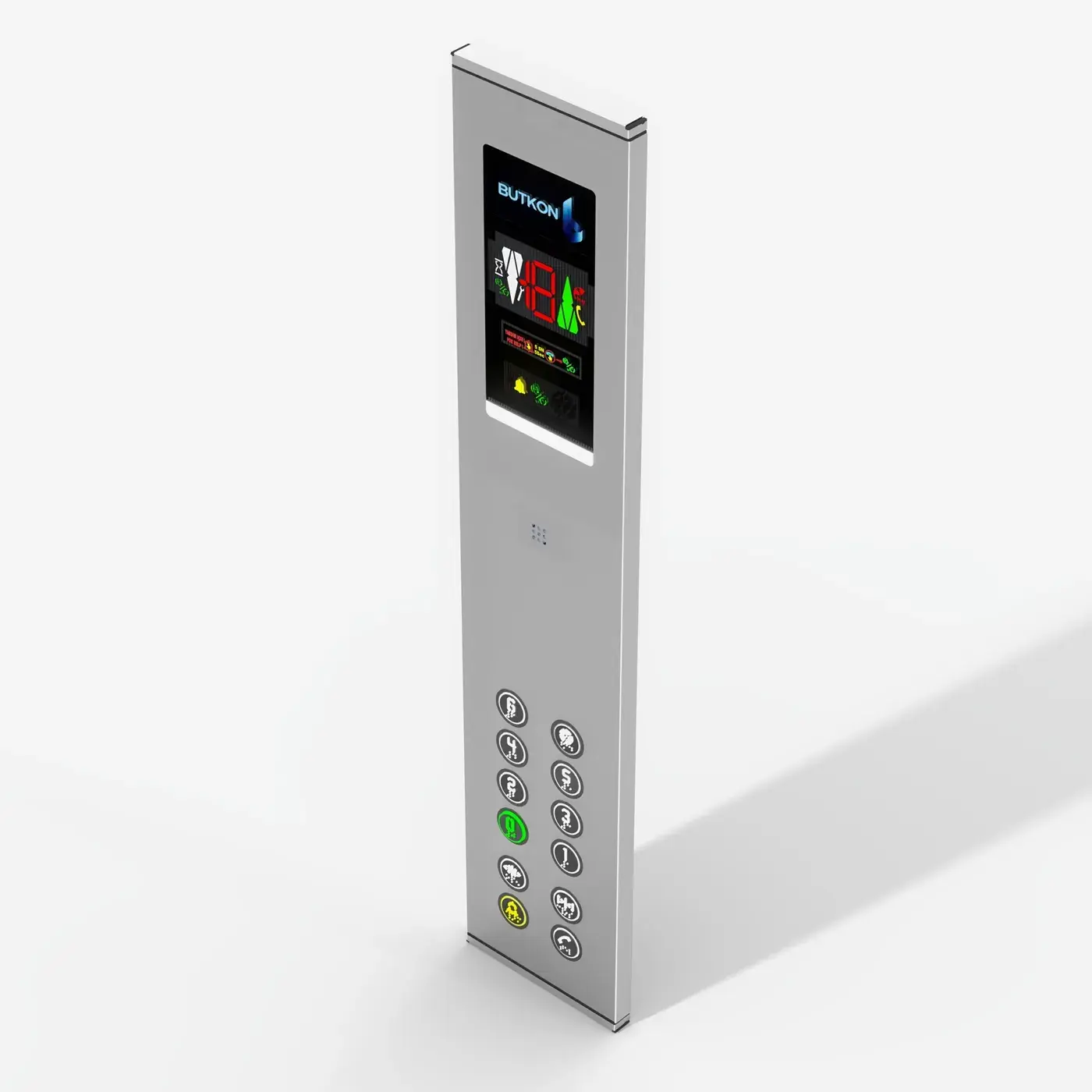

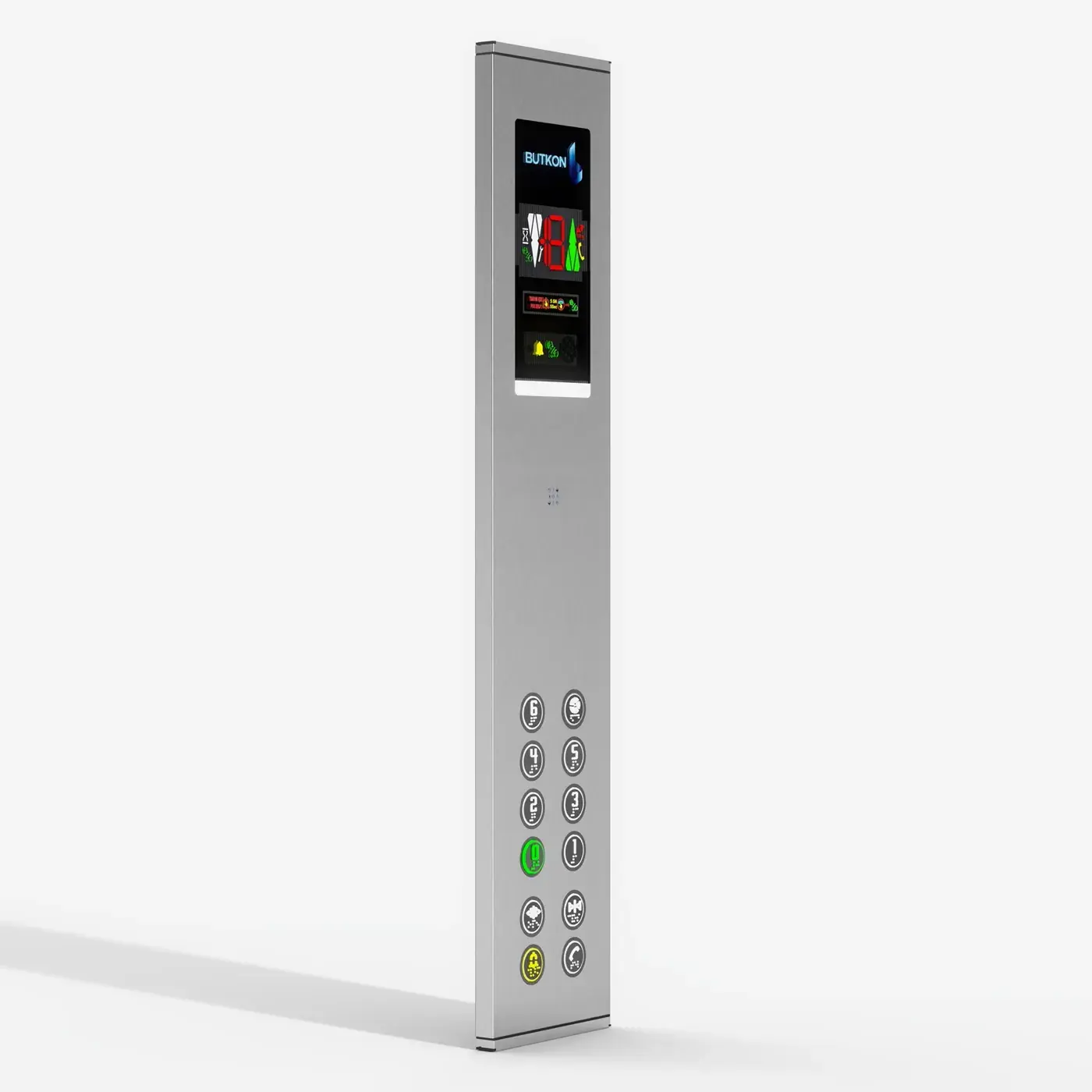

Surface-mounted steel car station. The reference configuration for new installations. This configuration: half height.
EN 81-20EN 81-70
| Mounting | Surface mounted |
|---|---|
| Panel height | Half height |
| Actuation | Mechanical push button |
| Width | 200 mm |
| Height | 1000 mm |
| Depth | 23 mm |
Configuration options
- Straightforward installationFront assembly and fixing points designed for fast mounting on site.
- Configurable front finishMirror, satin, black or grey panel surfaces on request.
- Configurable button finishButton surfaces matched to the panel front.
- Serial and parallel interfacesAvailable for parallel wiring and for serial-communication control systems.

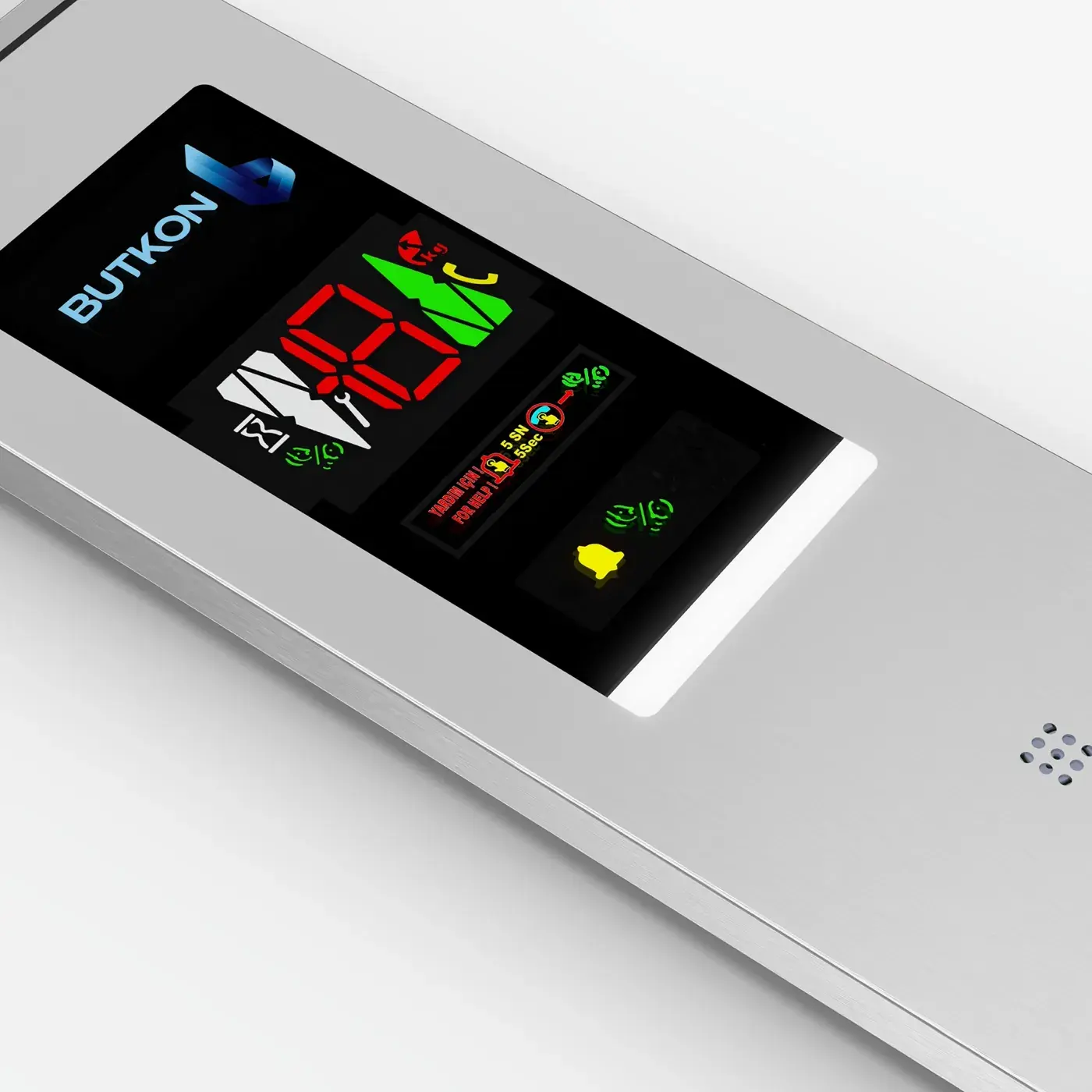

- Selectable indicationSeven-segment, dot-matrix, LCD or TFT indication depending on configuration.
- Emergency lightingIntegrated emergency illumination in the panel front.
- Custom engravingPanel engraving and illuminated logo to the customer artwork.
- Communication module optionPrepared for an integrated emergency-call and status-reporting module.
Request a quote for this product
Quote the article code U21YR0002 in your message so the position can be matched directly.
Dimensions
Variants and dimensions
Dimensions as published for this configuration. Confirm against the existing opening before ordering a retrofit position.
| Panel height | Width | Height | Depth |
|---|---|---|---|
| Half height | 200 mm | 1000 mm | 23 mm |
Ordering
Interface variants
Where a configuration exists for more than one control interface, each variant carries its own article code.
Half height
| Drive-controller bus | U21YR0052 |
|---|---|
| Serial communication | U21YR0053 |
