Glasline Button series
Glasline Button — full height, black
Article code U29TM0001
Flush-mounted glass-front car station with mechanical push buttons. This configuration: full height, black.
EN 81-20EN 81-70
| Mounting | Flush mounted |
|---|---|
| Panel height | Full height |
| Front finish | Black |
| Actuation | Mechanical push button |
| Width | 240 mm |
| Height | 2000 mm |
| Depth | 6-8 mm |
Configuration options
- Straightforward installationFront assembly and fixing points designed for fast mounting on site.
- Configurable front finishMirror, satin, black or grey panel surfaces on request.
- Configurable button finishButton surfaces matched to the panel front.
- Serial and parallel interfacesAvailable for parallel wiring and for serial-communication control systems.
- Selectable indicationSeven-segment, dot-matrix, LCD or TFT indication depending on configuration.
- Emergency lightingIntegrated emergency illumination in the panel front.
- Custom engravingPanel engraving and illuminated logo to the customer artwork.
- Communication module optionPrepared for an integrated emergency-call and status-reporting module.
Request a quote for this product
Quote the article code U29TM0001 in your message so the position can be matched directly.
Dimensions
Variants and dimensions
Dimensions as published for this configuration. Confirm against the existing opening before ordering a retrofit position.
| Panel height | Assembly | Width | Height | Depth | Frame width | Frame height | Cut-outs | Rows | Note |
|---|---|---|---|---|---|---|---|---|---|
| Full height | Front | 240 mm | 2000 mm | 6-8 mm | — | — | — | — | — |
| Full height | Back | 210 mm | 1800 mm | 35 mm | — | — | — | — | PANEL wth SWITCH&LOCK CODE:U29TM0003 |
| — | — | 234 mm | 1994 mm | — | 210 mm | 1800 mm | 10 (Including) the hole | 2 | — |
| — | — | 234 mm | 1994 mm | — | 210 mm | 1800 mm | 14(Including) the hole | 3 | — |
| — | — | 320 mm | 1994 mm | — | 290 mm | 1800 mm | 17(Including) the hole | 4 | — |
| — | — | 400 mm | 2000 mm | — | 370 mm | 1800 mm | 25(Including) the hole | 5 | — |
Related
More from Cabin operating panels
All 35 configurations
U29TM0002Glasline Button — full height, whiteFlush-mounted glass-front car station with mechanical push buttons. This configuration: full height, white.EN 81-20EN 81-70- Panel heightFull height
- Width240 mm
- Height2000 mm

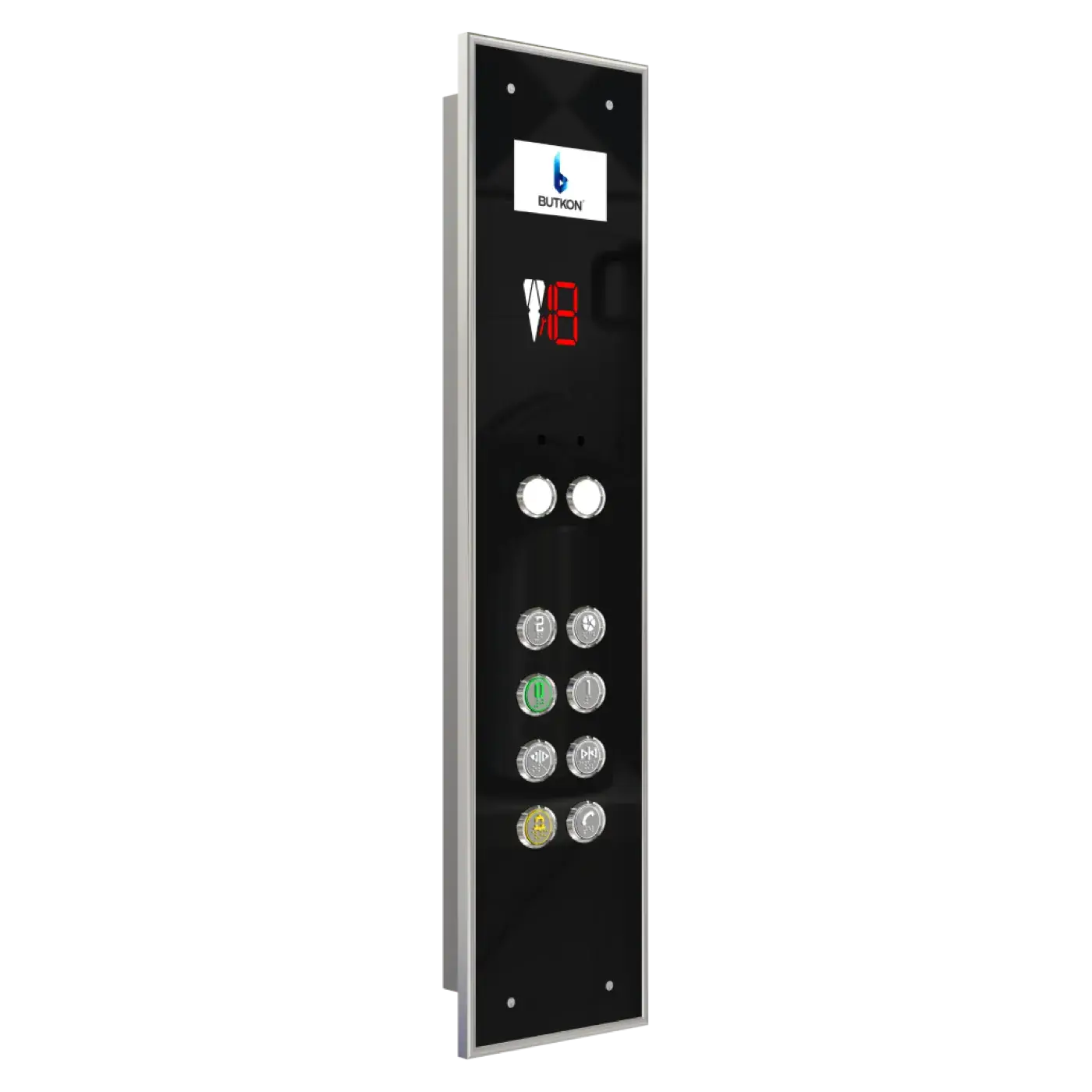

U29YR0001Glasline Button — half height, blackFlush-mounted glass-front car station with mechanical push buttons. This configuration: half height, black.EN 81-20EN 81-70- Panel heightHalf height

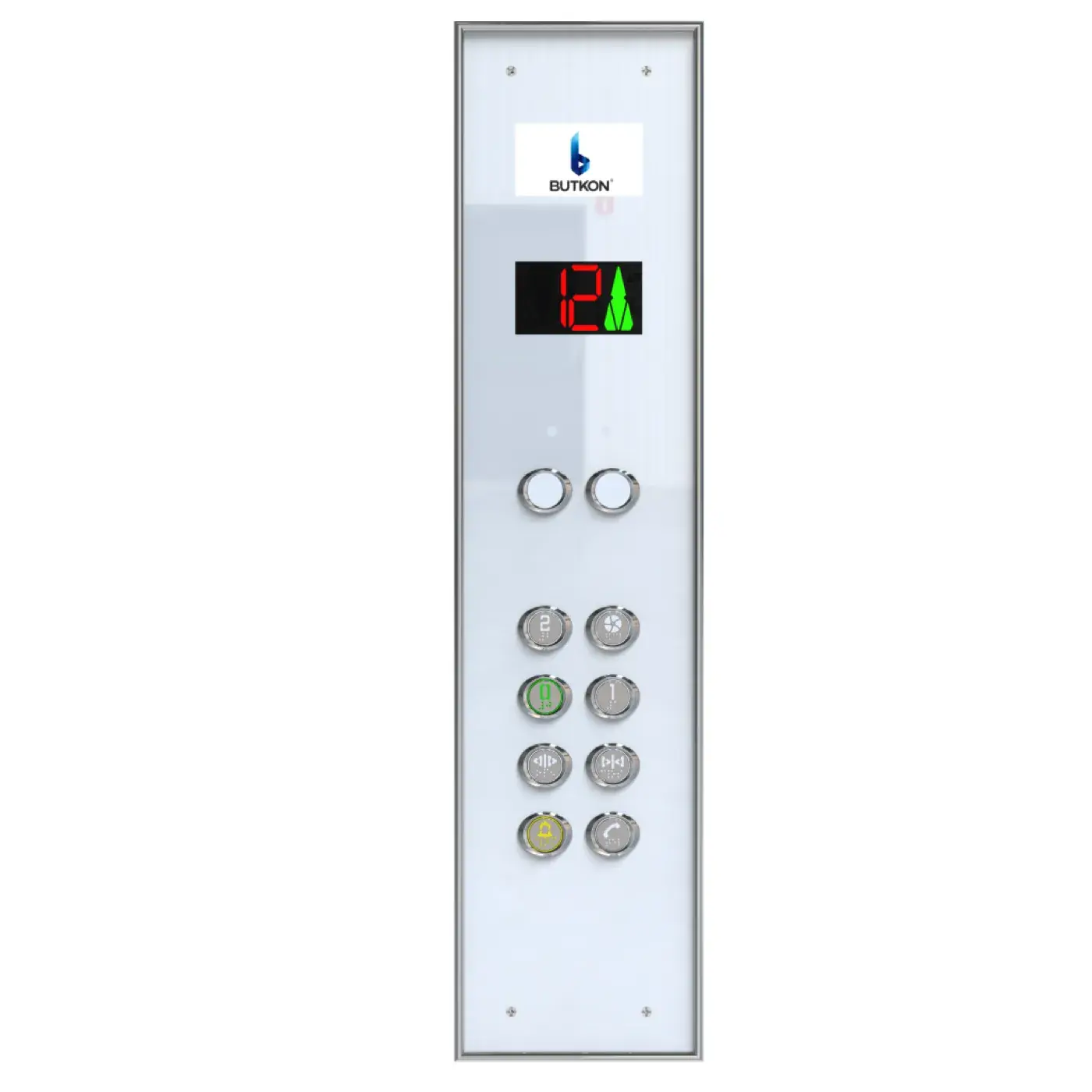

U29YR0002Glasline Button — half height, whiteFlush-mounted glass-front car station with mechanical push buttons. This configuration: half height, white.EN 81-20EN 81-70- Panel heightHalf height
