Horizon series
Horizon
Article code U21YT0001

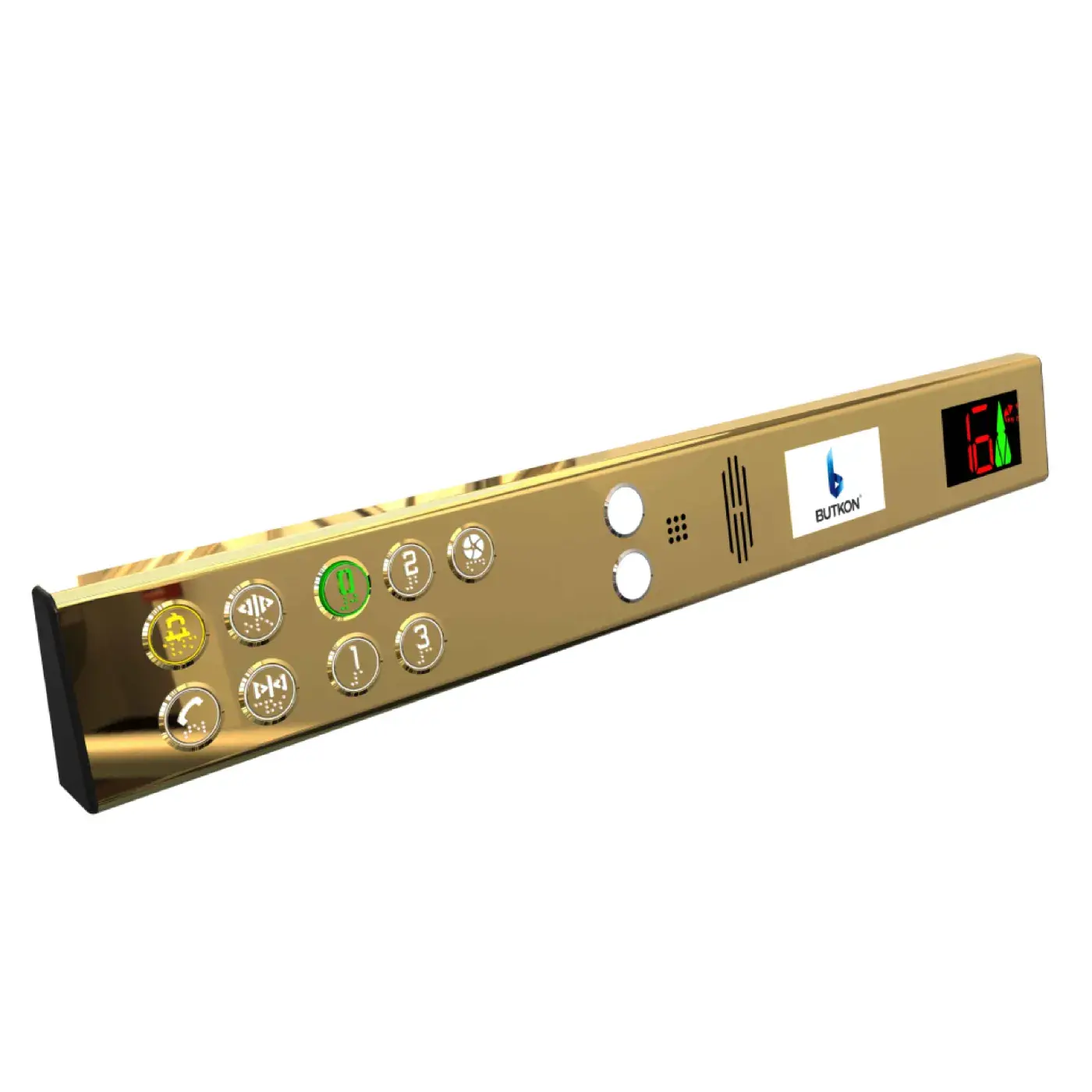

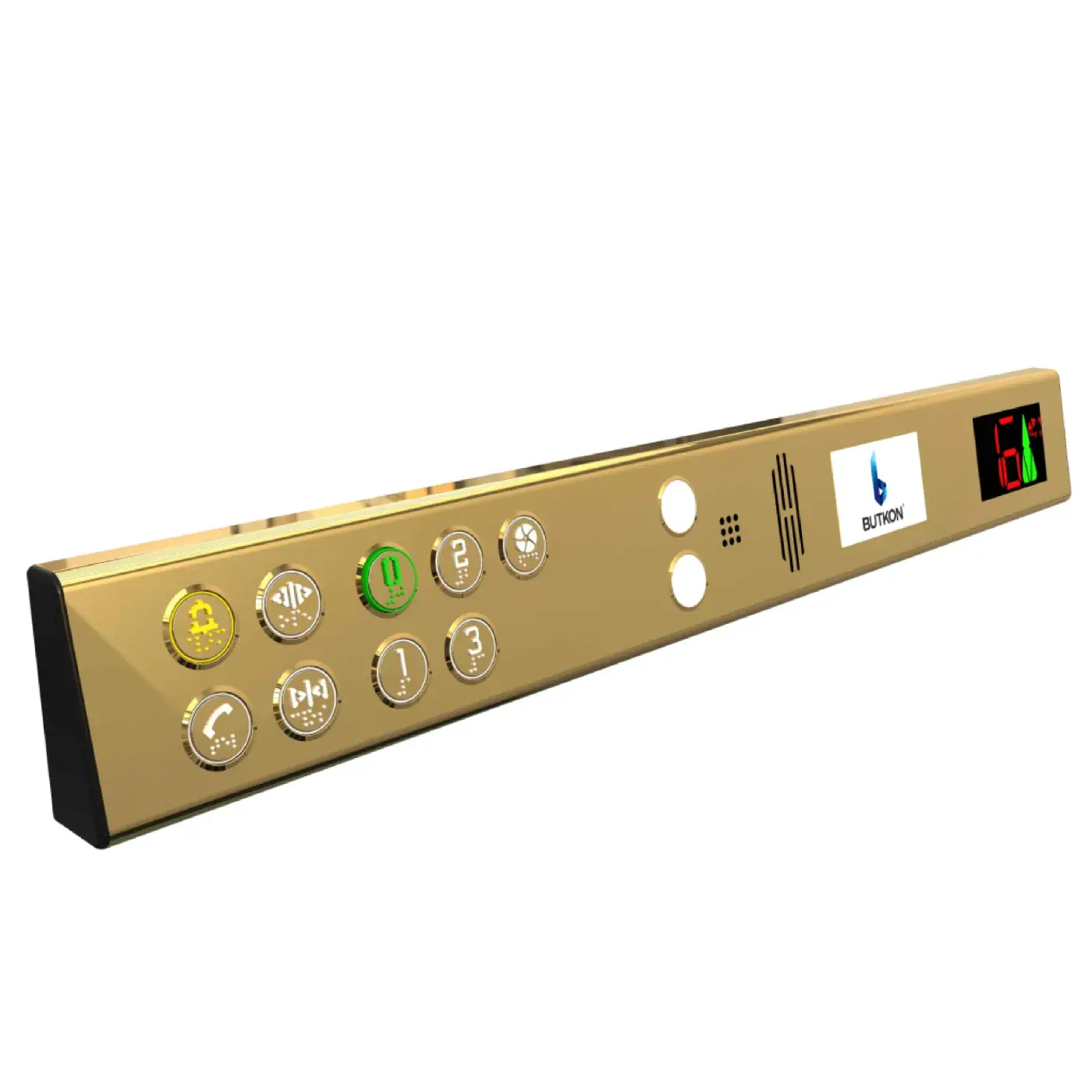

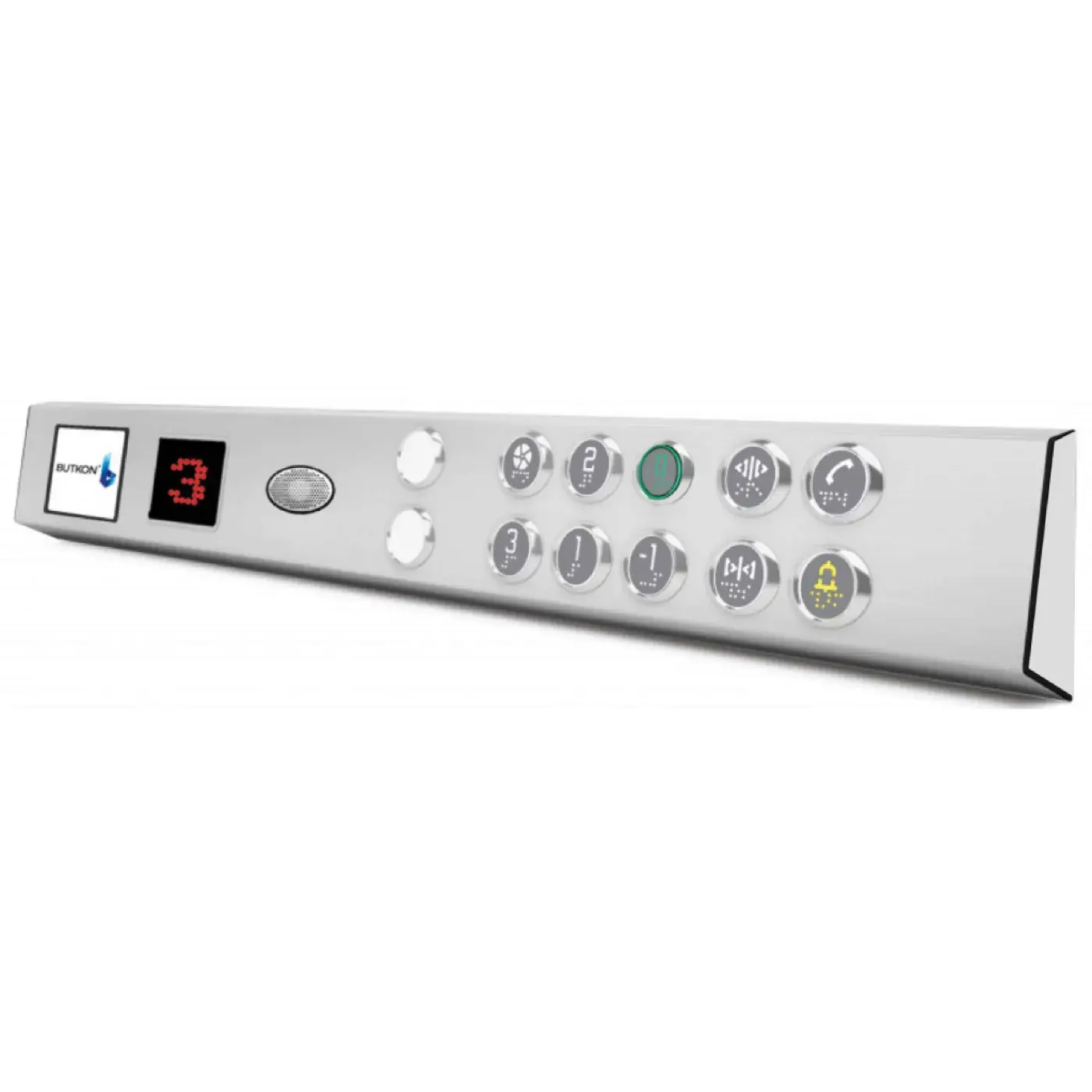

Horizontal car station for wide cars and side-wall installation.
EN 81-20EN 81-70
| Mounting | Surface mounted |
|---|---|
| Actuation | Mechanical push button |
| Width | 980 mm |
| Height | 128 mm |
| Depth | 55 mm |
Configuration options
- Straightforward installationFront assembly and fixing points designed for fast mounting on site.
- Configurable front finishMirror, satin, black or grey panel surfaces on request.
- Configurable button finishButton surfaces matched to the panel front.
- Serial and parallel interfacesAvailable for parallel wiring and for serial-communication control systems.
- Selectable indicationSeven-segment, dot-matrix, LCD or TFT indication depending on configuration.
- Emergency lightingIntegrated emergency illumination in the panel front.
- Custom engravingPanel engraving and illuminated logo to the customer artwork.
- Communication module optionPrepared for an integrated emergency-call and status-reporting module.
Request a quote for this product
Quote the article code U21YT0001 in your message so the position can be matched directly.
Dimensions
Variants and dimensions
Dimensions as published for this configuration. Confirm against the existing opening before ordering a retrofit position.
| Article code | Panel | Width | Height | Depth |
|---|---|---|---|---|
| U21YT0001 | Horizontal | 980 mm | 128 mm | 55 mm |
