Glasline Touch series

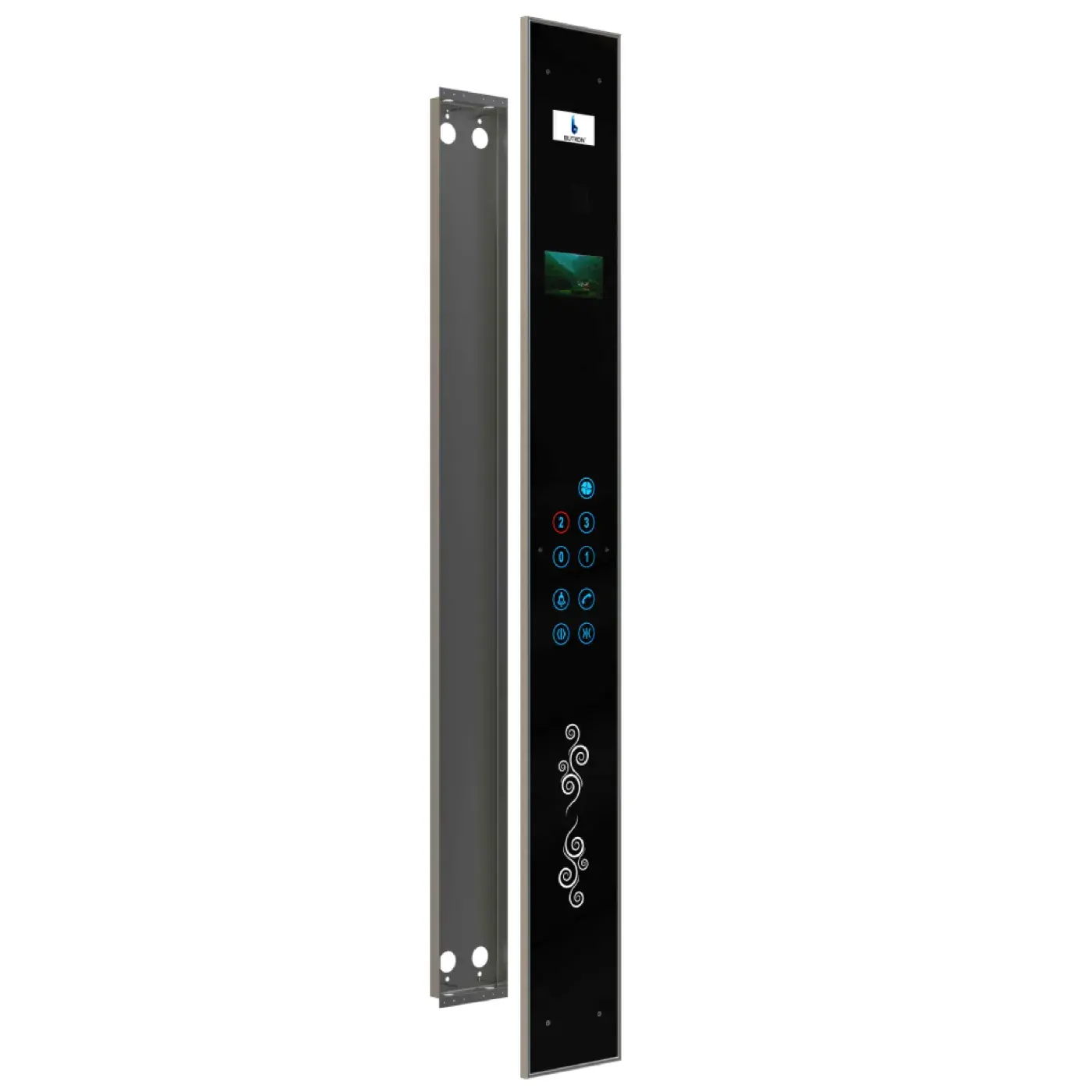

Glasline Touch — full height, black
Article code U31TM0001
Glass-front car station with capacitive touch actuation. This configuration: full height, black.
EN 81-20EN 81-70
| Mounting | Surface mounted |
|---|---|
| Panel height | Full height |
| Front finish | Black |
| Actuation | Touchless |
| Width | 240 mm |
| Height | 2000 mm |
| Depth | 6-8 mm |
Configuration options
- Straightforward installationFront assembly and fixing points designed for fast mounting on site.
- Configurable front finishMirror, satin, black or grey panel surfaces on request.
- Configurable button finishButton surfaces matched to the panel front.
- Serial and parallel interfacesAvailable for parallel wiring and for serial-communication control systems.
- Selectable indicationSeven-segment, dot-matrix, LCD or TFT indication depending on configuration.
- Emergency lightingIntegrated emergency illumination in the panel front.
- Custom engravingPanel engraving and illuminated logo to the customer artwork.
- Communication module optionPrepared for an integrated emergency-call and status-reporting module.
Request a quote for this product
Quote the article code U31TM0001 in your message so the position can be matched directly.
Dimensions
Variants and dimensions
Dimensions as published for this configuration. Confirm against the existing opening before ordering a retrofit position.
| Panel height | Assembly | Width | Height | Depth | Note |
|---|---|---|---|---|---|
| Full height | Front | 240 mm | 2000 mm | 6-8 mm | — |
| Full height | Back | 210 mm | 1800 mm | 35 mm | PANEL wth SWITCH&LOCK CODE:U31TM0003 |
