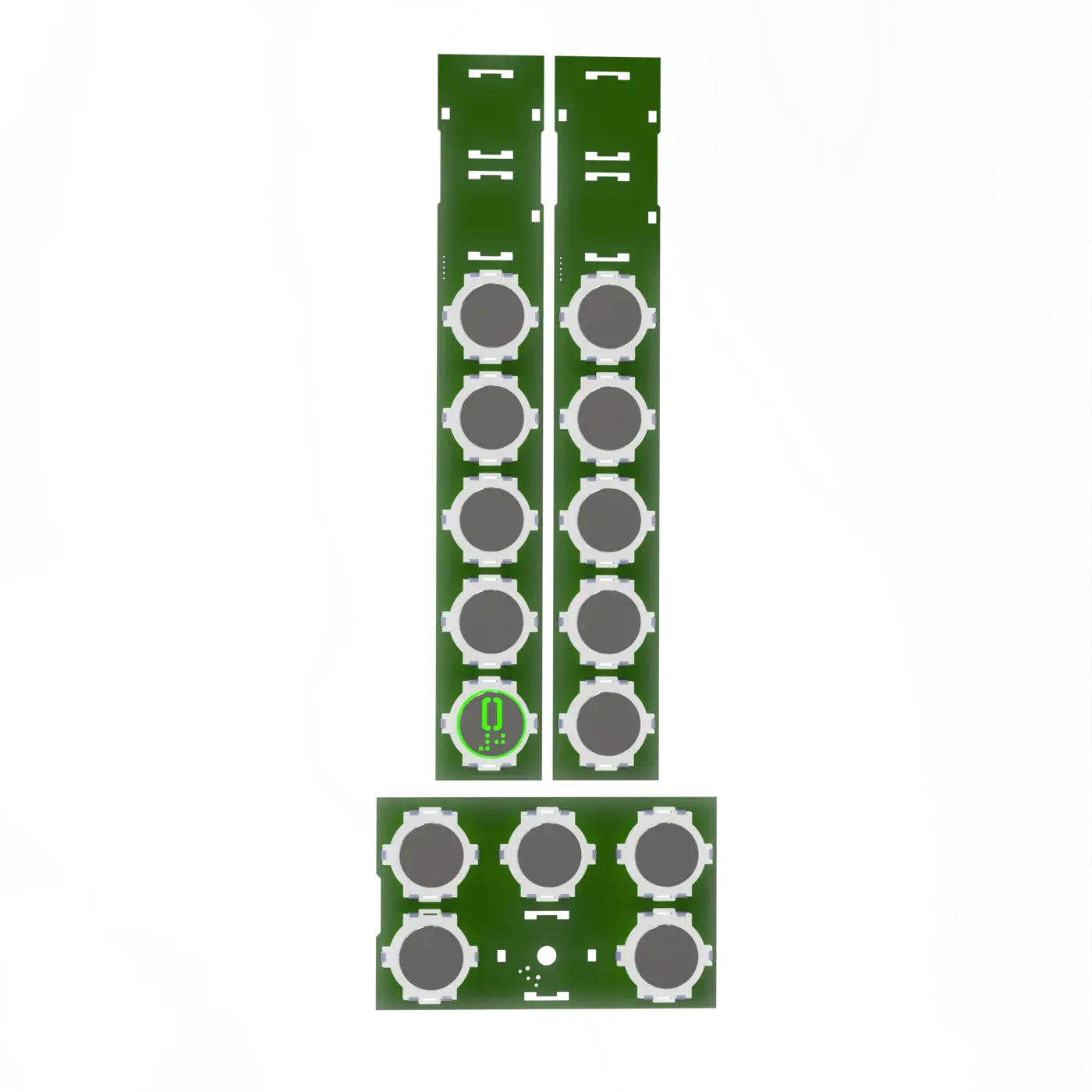

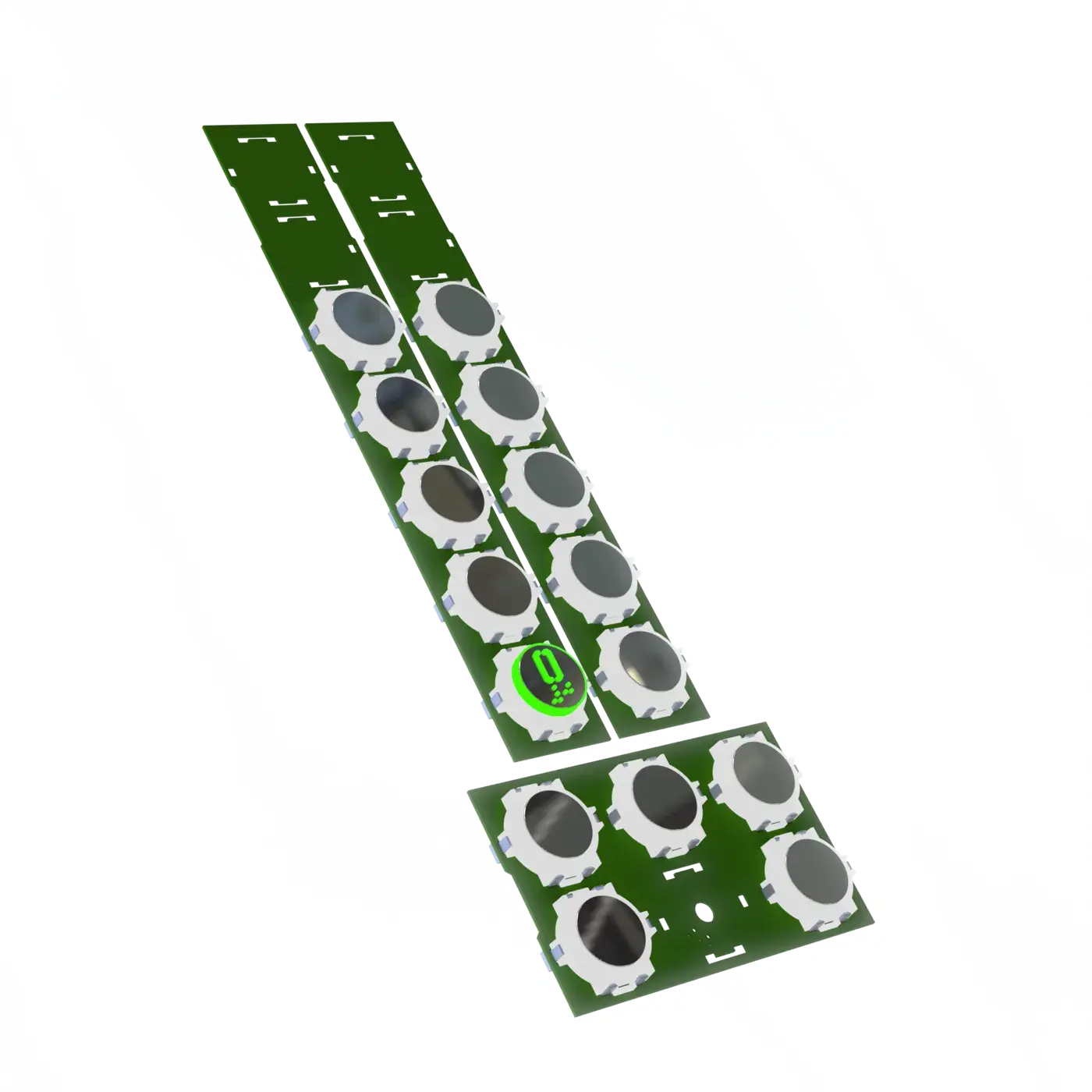

Neva series
Neva
Article code U21TM0136
Car station platform with configurable indication, engraving and communication options.
EN 81-20EN 81-70
| Actuation | Mechanical push button |
|---|
Configuration options
- Straightforward installationFront assembly and fixing points designed for fast mounting on site.
- Configurable front finishMirror, satin, black or grey panel surfaces on request.
- Configurable button finishButton surfaces matched to the panel front.
- Serial and parallel interfacesAvailable for parallel wiring and for serial-communication control systems.
- Selectable indicationSeven-segment, dot-matrix, LCD or TFT indication depending on configuration.
- Emergency lightingIntegrated emergency illumination in the panel front.
- Custom engravingPanel engraving and illuminated logo to the customer artwork.
- Communication module optionPrepared for an integrated emergency-call and status-reporting module.
Request a quote for this product
Quote the article code U21TM0136 in your message so the position can be matched directly.
Dimensions
Variants and dimensions
Dimensions as published for this configuration. Confirm against the existing opening before ordering a retrofit position.
| Article code |
|---|
| U21TM0136 |
