Guard car station series

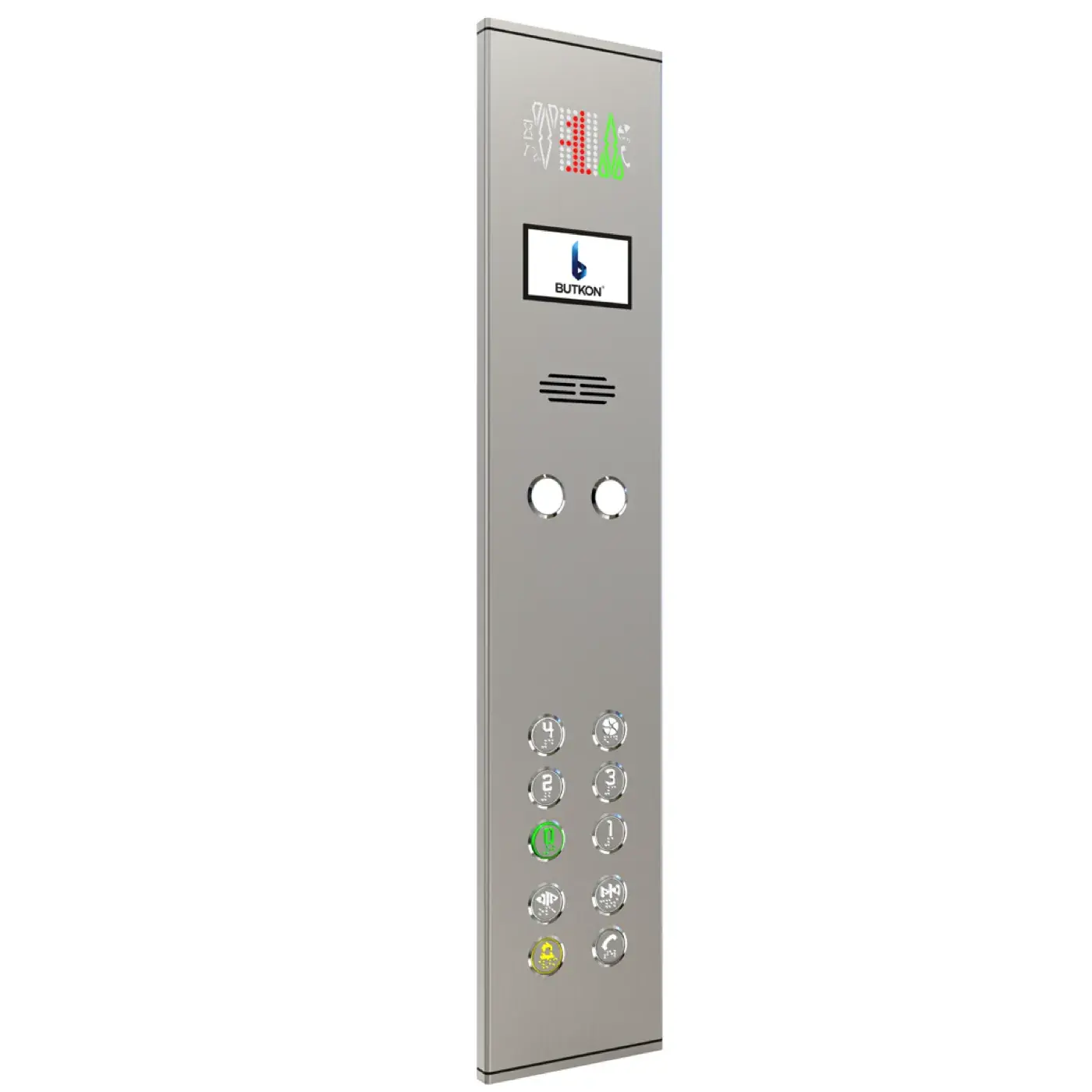

Guard car station — half height
Article code U21YR0092
Reinforced car operating panel for public and unattended installations. This configuration: half height.
EN 81-20EN 81-70
| Panel height | Half height |
|---|---|
| Width | 200 mm |
| Height | 1000 mm |
| Depth | 23 mm |
Configuration options
- Straightforward installationFront assembly and fixing points designed for fast mounting on site.
- Configurable front finishMirror, satin, black or grey panel surfaces on request.
- Configurable button finishButton surfaces matched to the panel front.
- Serial and parallel interfacesAvailable for parallel wiring and for serial-communication control systems.
- Dot-matrix indicationDot-matrix floor and direction display.
- Emergency lightingIntegrated emergency illumination in the panel front.
- Custom engravingPanel engraving and illuminated logo to the customer artwork.
- Communication module optionPrepared for an integrated emergency-call and status-reporting module.
Request a quote for this product
Quote the article code U21YR0092 in your message so the position can be matched directly.
Dimensions
Variants and dimensions
Dimensions as published for this configuration. Confirm against the existing opening before ordering a retrofit position.
| Designation | Width | Height | Depth |
|---|---|---|---|
| Half height | 200 mm | 1000 mm | 23 mm |
Ordering
Interface variants
Where a configuration exists for more than one control interface, each variant carries its own article code.
Further interface codes
| Drive-controller bus | U21YR0093 |
|---|---|
| Serial communication | U21YR0057 |
