Vega series

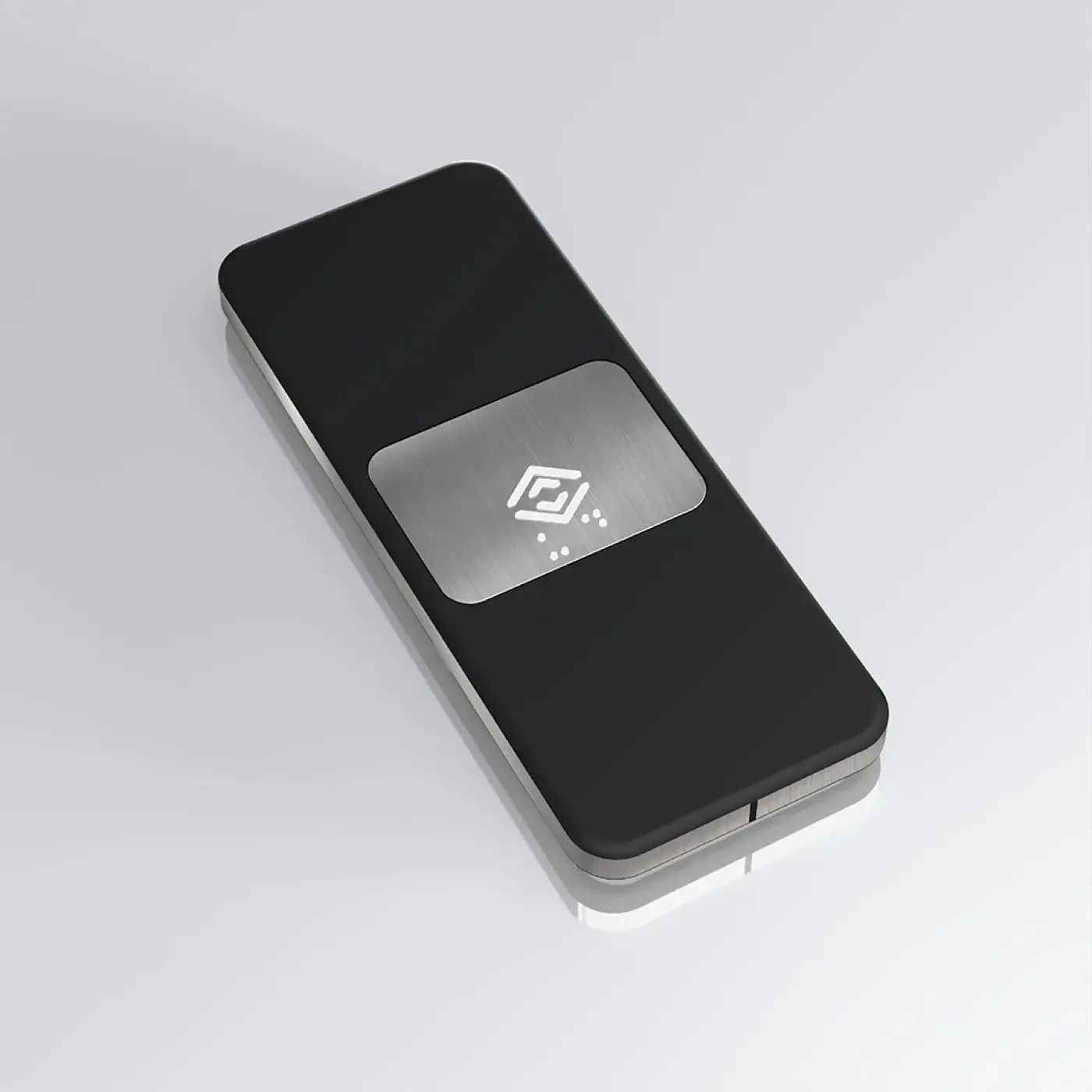

Vega — without indicator, one button
Article code U20DJ0027
Landing fixture matching the Vega car station front. This configuration: without indicator, one button.
EN 81-20EN 81-70
| Indication | Without indicator |
|---|---|
| Call buttons | One button |
| Actuation | Mechanical push button |
| Width | 80 mm |
| Height | 250 mm |
| Depth | 10 mm |
Configuration options
- Straightforward installationFront assembly and fixing points designed for fast mounting on site.
- Configurable front finishMirror, satin, black or grey panel surfaces on request.
- Configurable button finishButton surfaces matched to the panel front.
- Serial and parallel interfacesAvailable for parallel wiring and for serial-communication control systems.
- Selectable indicationSeven-segment, dot-matrix, LCD or TFT indication depending on configuration.
- Emergency lightingIntegrated emergency illumination in the panel front.
- Custom engravingPanel engraving and illuminated logo to the customer artwork.
- Communication module optionPrepared for an integrated emergency-call and status-reporting module.
Request a quote for this product
Quote the article code U20DJ0027 in your message so the position can be matched directly.
Dimensions
Variants and dimensions
Dimensions as published for this configuration. Confirm against the existing opening before ordering a retrofit position.
| Width | Height | Depth |
|---|---|---|
| 80 mm | 250 mm | 10 mm |
Ordering
Interface variants
Where a configuration exists for more than one control interface, each variant carries its own article code.
Further interface codes
| Drive-controller bus | U20DJ0029 |
|---|---|
| Serial communication | U20DJ0030 |
