Pin-Fix series

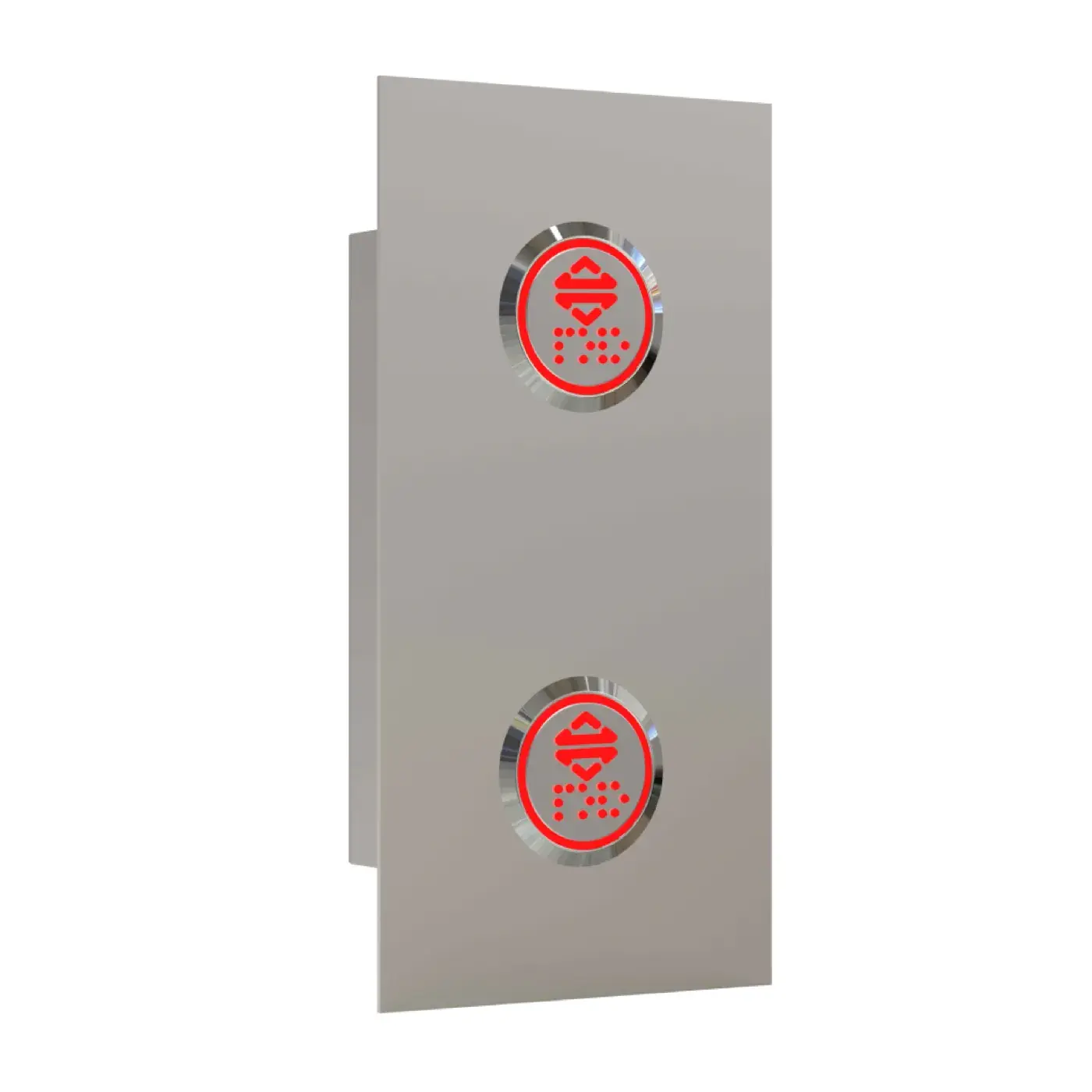

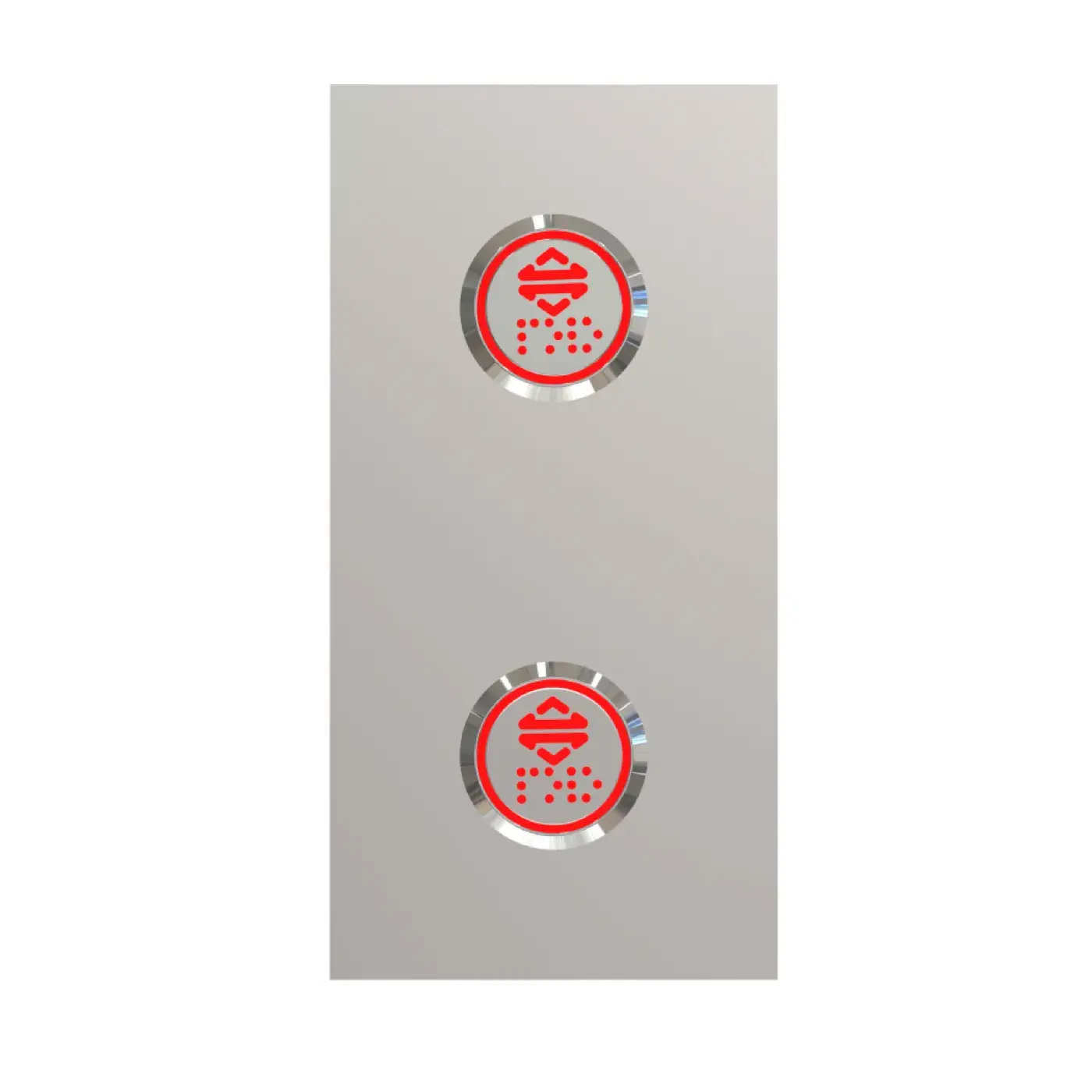

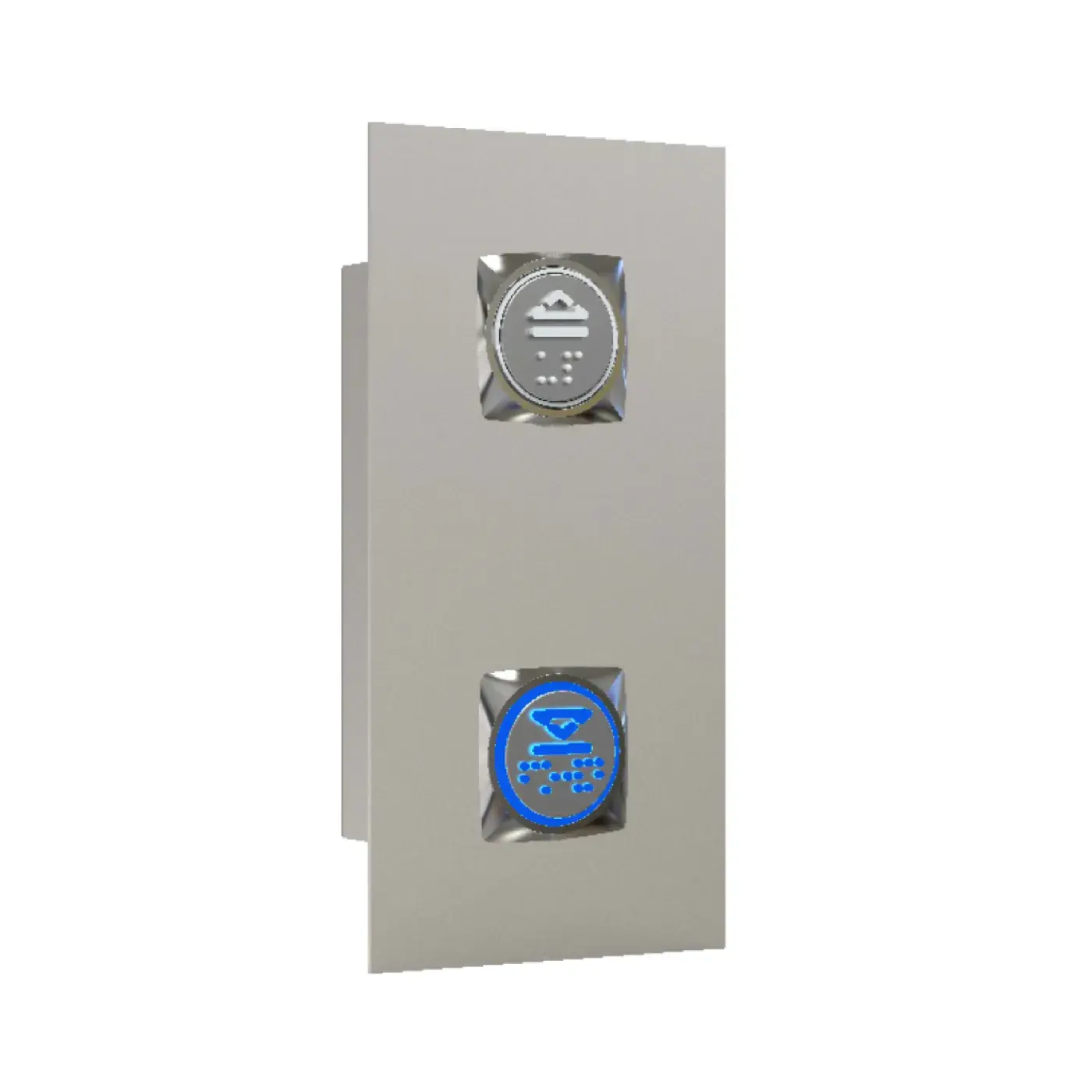

Pin-Fix — without indicator, two buttons
Article code U26DJ0002
Flush-mounted landing fixture with pin fixing for fast shaft-wall installation. This configuration: without indicator, two buttons.
EN 81-20EN 81-70
| Mounting | Flush mounted |
|---|---|
| Indication | Without indicator |
| Call buttons | Two buttons |
| Actuation | Mechanical push button |
| Width | 100 mm |
| Height | 200 mm |
| Depth | 37 mm |
Configuration options
- Straightforward installationFront assembly and fixing points designed for fast mounting on site.
- Configurable front finishMirror, satin, black or grey panel surfaces on request.
- Configurable button finishButton surfaces matched to the panel front.
- Serial and parallel interfacesAvailable for parallel wiring and for serial-communication control systems.
- Selectable indicationSeven-segment, dot-matrix, LCD or TFT indication depending on configuration.
- Emergency lightingIntegrated emergency illumination in the panel front.
- Custom engravingPanel engraving and illuminated logo to the customer artwork.
- Communication module optionPrepared for an integrated emergency-call and status-reporting module.
Request a quote for this product
Quote the article code U26DJ0002 in your message so the position can be matched directly.
Dimensions
Variants and dimensions
Dimensions as published for this configuration. Confirm against the existing opening before ordering a retrofit position.
| Article code | Width | Height | Depth |
|---|---|---|---|
| U26DJ0002 | 100 mm | 200 mm | 37 mm |
