Glasline Touch series

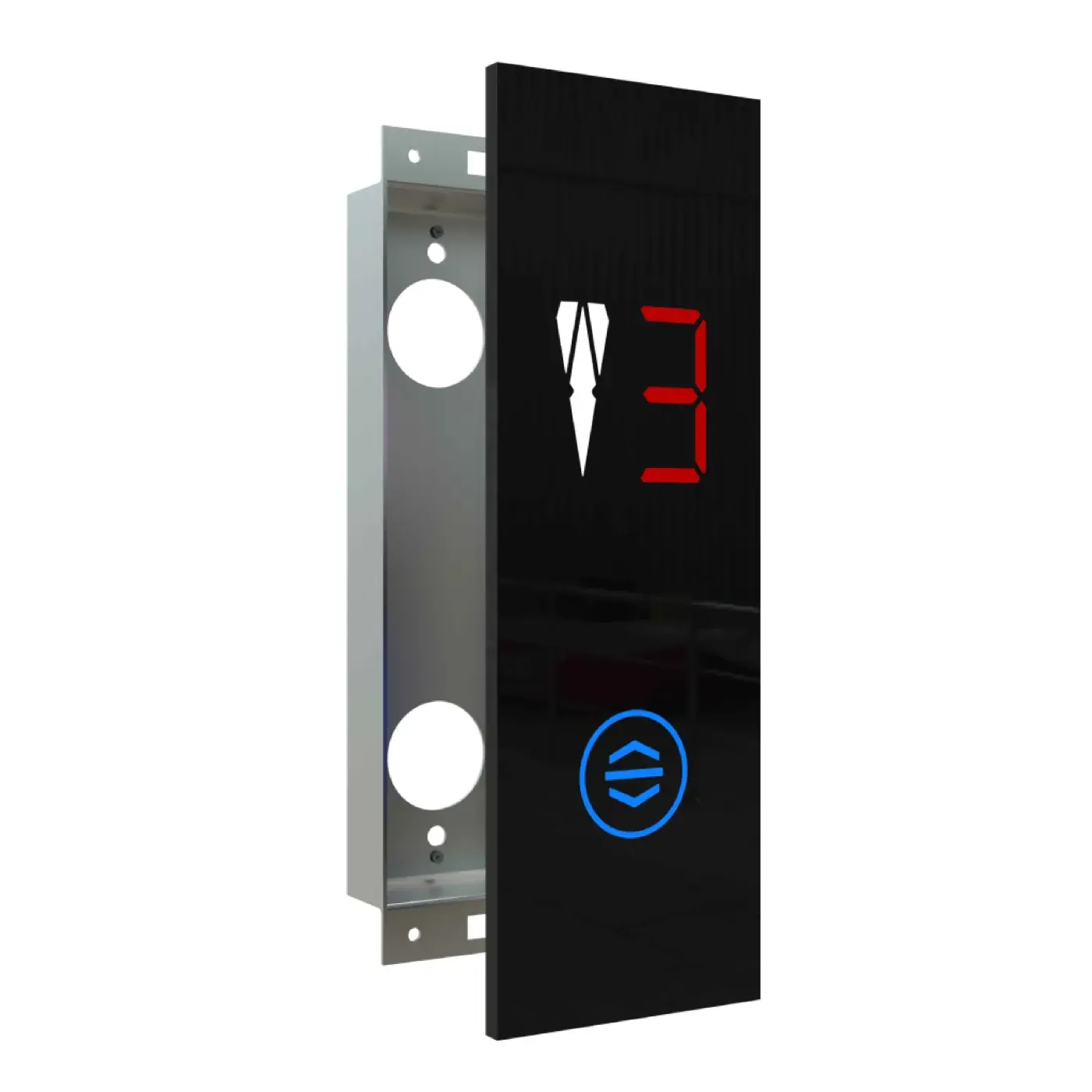

Glasline Touch — with indicator, one button, black
Article code U30SM0001
Glass-front landing fixture with capacitive touch actuation. This configuration: with indicator, one button, black.
EN 81-20EN 81-70
| Mounting | Flush mounted |
|---|---|
| Indication | With indicator |
| Call buttons | One button |
| Front finish | Black |
| Actuation | Touchless |
| Width | 100 mm |
| Height | 300 mm |
| Depth | 6 mm |
Configuration options
- Straightforward installationFront assembly and fixing points designed for fast mounting on site.
- Configurable front finishMirror, satin, black or grey panel surfaces on request.
- Configurable button finishButton surfaces matched to the panel front.
- Serial and parallel interfacesAvailable for parallel wiring and for serial-communication control systems.
- Selectable indicationSeven-segment, dot-matrix, LCD or TFT indication depending on configuration.
Request a quote for this product
Quote the article code U30SM0001 in your message so the position can be matched directly.
Dimensions
Variants and dimensions
Dimensions as published for this configuration. Confirm against the existing opening before ordering a retrofit position.
| Article code | Type | Width | Height | Depth |
|---|---|---|---|---|
| U30SM0001 | Front | 100 mm | 300 mm | 6 mm |
| U30SM0001 | Back | 75 mm | 260 mm | 35 mm |
