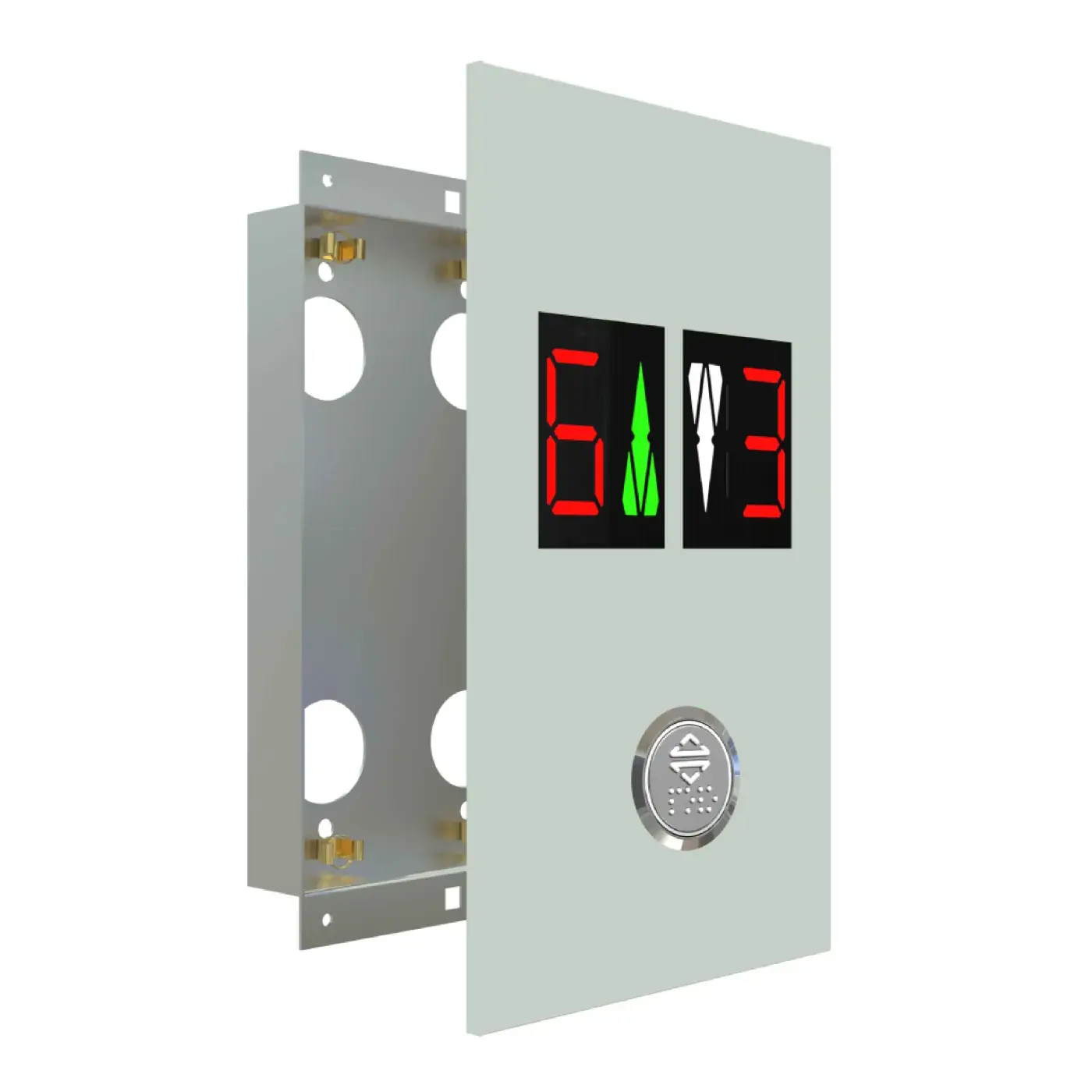

Glasline Button — duplex, with indicator, one button — landing call panel, product view

Glasline Button series

Glasline Button — duplex, with indicator, one button

Article code U28DB0004

Flush-mounted glass-front landing fixture with mechanical push buttons. This configuration: duplex, with indicator, one button, white, with keyswitch.

EN 81-20EN 81-70
Specification
Group controlDuplex
IndicationWith indicator
Call buttonsOne button
Front finishWhite
ActuationMechanical push button
OptionWith keyswitch
Width190 mm
Height320 mm
Depth6 mm

Configuration options

  • Straightforward installationFront assembly and fixing points designed for fast mounting on site.
  • Configurable front finishMirror, satin, black or grey panel surfaces on request.
  • Configurable button finishButton surfaces matched to the panel front.
  • Serial and parallel interfacesAvailable for parallel wiring and for serial-communication control systems.
  • Selectable indicationSeven-segment, dot-matrix, LCD or TFT indication depending on configuration.
Request a quote for this product

Quote the article code U28DB0004 in your message so the position can be matched directly.

Dimensions

Variants and dimensions

Dimensions as published for this configuration. Confirm against the existing opening before ordering a retrofit position.

Article codeAssemblyWidthHeightDepthNote
U28DB0004Front190 mm320 mm6 mm—
—153 mm260 mm35 mm—Back
